1. Introduction
In modern water treatment systems, multi-media filters (MMF) are a crucial component for removing suspended solids, turbidity, and impurities from raw water. Unlike single-layer sand filters, multi-media filters use multiple layers of different materials, such as anthracite, sand, and garnet, each with distinct particle sizes and densities.
But why are these filter materials arranged in tiers based on particle size? The answer lies in achieving deeper filtration, higher efficiency, and longer operating cycles.
2. What Is a Multi-Media Filter?
A multi-media filter is a type of depth filtration system that uses several layers of granular materials to trap impurities as water flows through the bed.
Typical filter media include:
•Anthracite (coarse layer) – light and large-grained (top layer)
•Silica sand (medium layer) – moderate grain size (middle layer)
•Garnet or magnetite (fine layer) – dense and fine-grained (bottom layer)
This structured layering creates a gradual filtration process, capturing particles of various sizes as water passes through different depths.
3. Why Filter Media Are Arranged by Particle Size
(1) To Achieve Depth Filtration
In a multi-tier design, the coarser materials are placed on top and finer ones at the bottom.
•Large particles in the upper layer capture coarse impurities.
•Medium and fine layers below capture smaller suspended solids.
This allows contaminants to be distributed throughout the entire filter bed, not just on the surface — preventing rapid clogging and extending the filter’s lifespan.
Result: Higher dirt-holding capacity and longer filtration cycles.
(2) To Maintain Proper Flow and Prevent Clogging
If fine media were placed on top, they would trap impurities too quickly, forming a surface cake that blocks flow.
By layering coarse-to-fine media, water flows evenly through each section, maintaining stable filtration speed and pressure balance.
�� Ensures consistent flow rate, efficient filtration, and lower maintenance frequency.
(3) To Optimize Backwashing Performance
During backwashing, the upward flow of water lifts and cleans the filter bed.
Since fine media are denser and located at the bottom, they remain in place during backwash, while lighter, coarser media rise and mix slightly — ensuring effective cleaning without media loss.
Result: Longer service life and stable media structure after multiple backwash cycles.
(4) To Enhance Filtration Efficiency
Each media layer targets specific particle sizes:
|
Filter Layer |
Typical Material |
Particle Size |
Function |
|
Top |
Anthracite |
0.8–1.2 mm |
Traps large particles, reduces turbidity |
|
Middle |
Silica Sand |
0.5–0.8 mm |
Removes medium-sized solids |
|
Bottom |
Garnet |
0.3–0.5 mm |
Captures fine particles and colloids |
This graded design allows water to pass through progressively finer filtration zones, achieving high clarity and low turbidity output water.
4. Advantages of Layered Multi-Media Filtration
•Higher filtration accuracy than single-layer sand filters
•Greater dirt-holding capacity and longer service intervals
•Uniform flow and reduced pressure drop
•Efficient backwash regeneration without media mixing
•Stable output water quality suitable for RO, UF, and industrial pretreatment
Multi-media filters are widely used in municipal water treatment, industrial process water, cooling systems, and RO pre-filtration.
5. Conclusion
The arrangement of filter media by particle size is not random — it is a scientifically designed strategy that maximizes depth filtration, prevents clogging, and simplifies backwashing.
By combining different granular materials from coarse to fine, multi-media filters achieve high-efficiency solid removal, longer operation cycles, and consistent water clarity, making them an essential step in modern water treatment systems.
Request More Information or Expert Advice
Share a few details, and we’ll provide deeper insights, tailored suggestions, or product support.

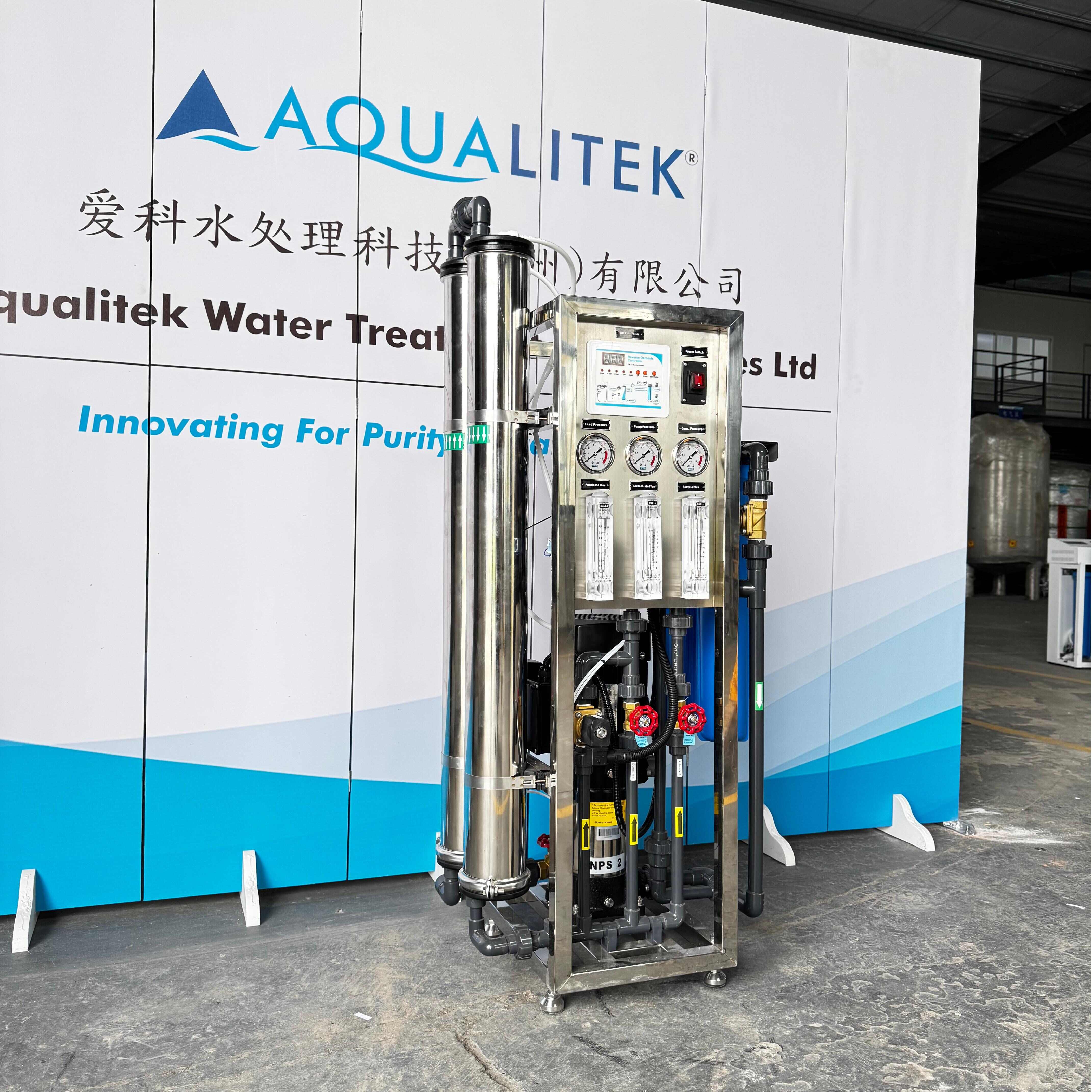

Our 500 LPH Reverse Osmosis (RO) System is engineered to provide high-quality purified water for commercial applications. Designed with advanced RO technology, durable components, and a user-friendly interface, this system ensures consistent performance, low maintenance, and long-term reliability.
