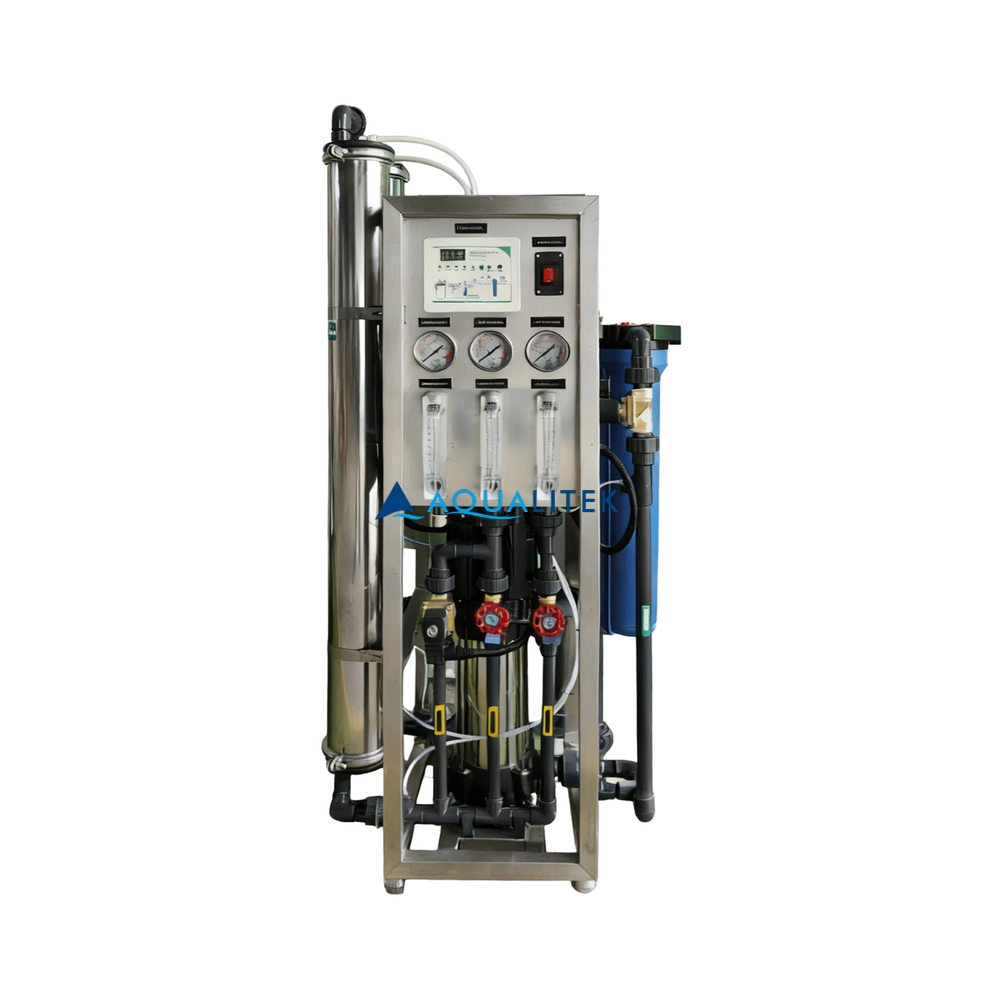

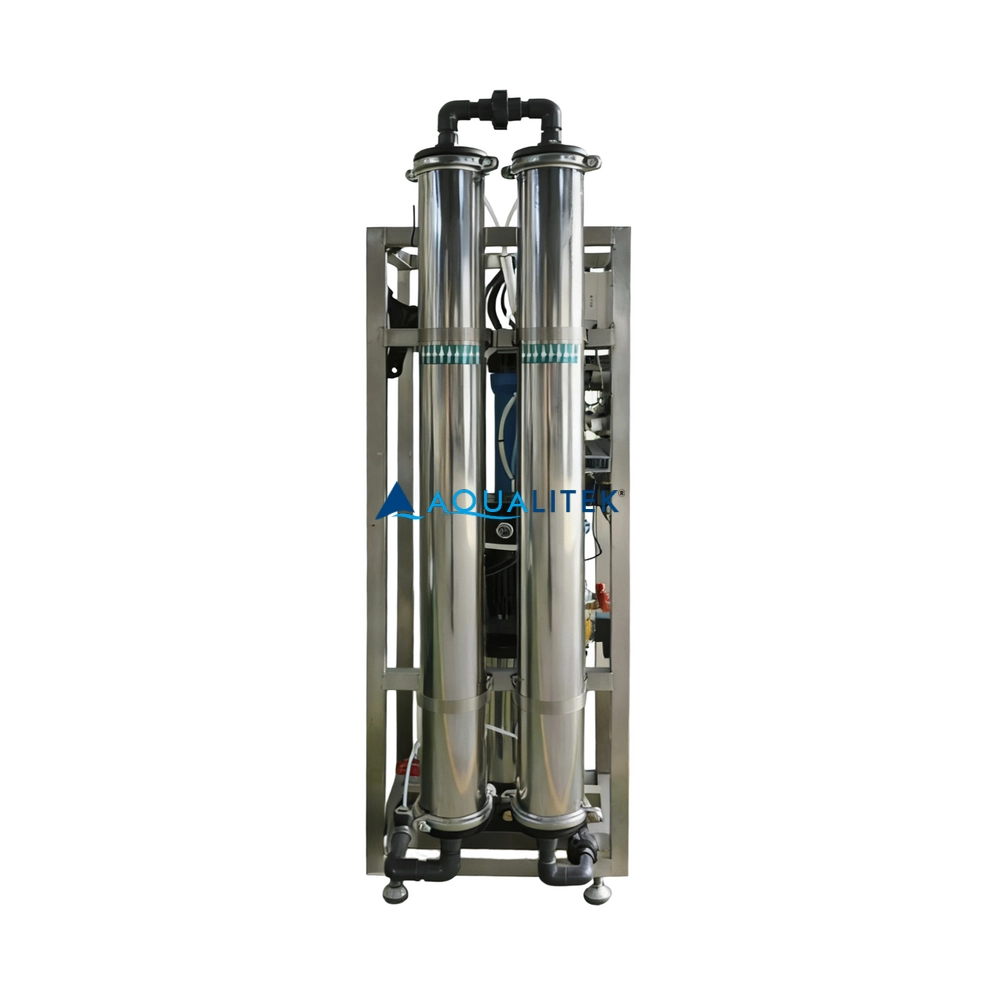

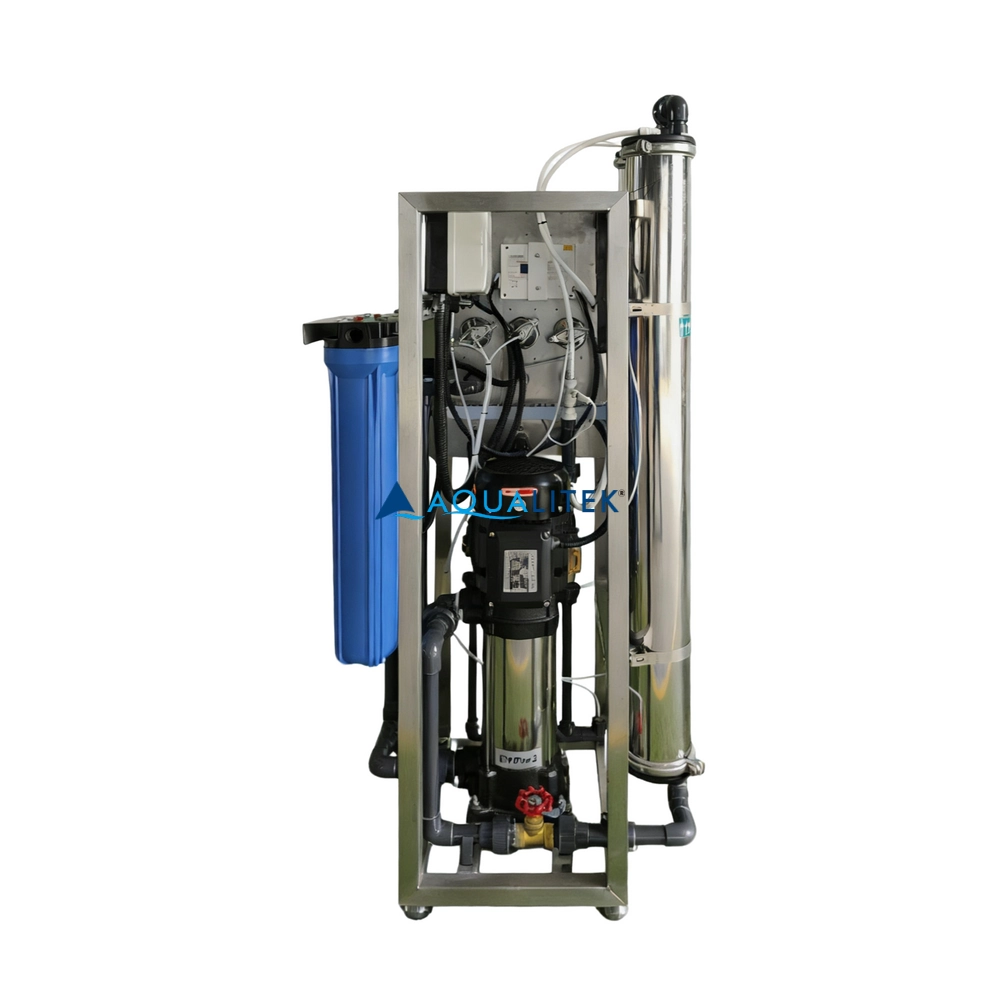

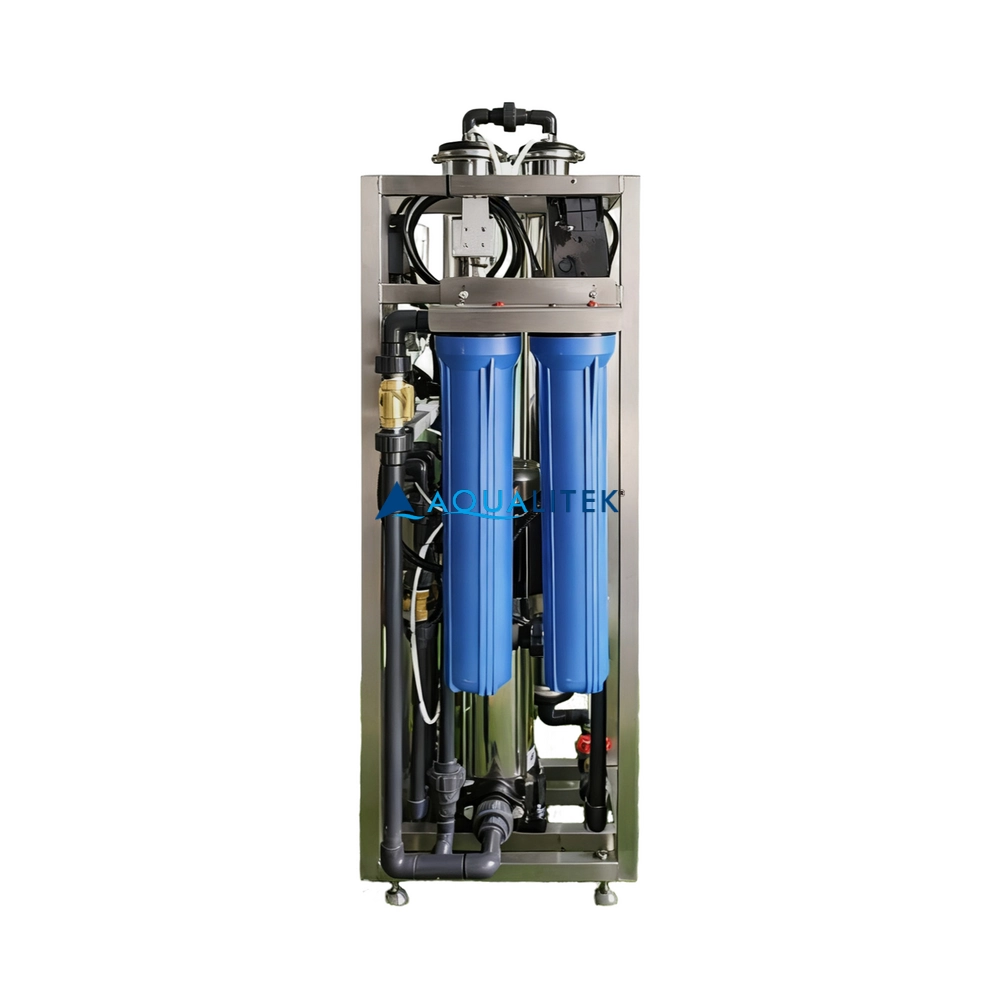

Tap Water Reverse Osmosis (TWRO) Systems TWV Series
TWV series Reverse Osmosis (RO) systems are pre-engineered and pre-assembled units with 2.5”/4” membrane housings（single element type）for tap water(lower TDS).They are designed for overall superior performance, high recovery rates and offer great savings with low maintenance and operation costs.
01
Standard Features of TWV Series Reverse Osmosis Systems
➢ SS304 or Brass corrosion resistant high pressure pump
➢ 2.5”/4” spiral wound thin-film composite (TFC) membranes
➢ SS304 sanitary pressure vessels
➢ Heavy duty 5 micron pretreatment sediment filter
➢ Pre/post filter and pump glycerin filled gauges
➢ Corrosion resistant SS concentrate and recirculation throttling valves
➢ Low pressure and high pressure switches
➢ Product, reject and recirculation flow meters / Water quality monitor
➢ Heavy duty DIN UPVC piping
➢ Stable and corrosion-free SS304 frame
02
RO Control Panel
➢ Low pressure/high pressure switch protections and Auto restart
➢ Pre–Treatment lockout and Level controls
➢ Startup flush/timed flush
➢ Indicator status lights
03
Available Optional Features of TWV Series Reverse Osmosis Systems
➢ Skid mounted with pre and post treatment (Media filters, etc)
➢ Fiberglass reinforced plastic (FRP) pressure vessels
➢ Stainless Steel sediment filter housing
➢ High Performance UV sterilizer/Ozone generator
➢ Corrosion-free stainless steel, HDPE, FRP storage tanks (feed, permeate, etc)
➢ Pressurized storage system/Dosing System/CIP system
➢ Variable-frequency drive (VFD)/PH meter/ORP sensor/Temperature detector/residual Chlorine detector, etc.
➢ Mild steel with paint Frame/Caster Wheels
➢ Additional Customization Available on Request
04
Benefits of TWV Series Reverse Osmosis Systems
➢ Low energy TFC membranes to get high flow and ensure water quality
➢ Reject recycle maximizes water recovery and minimizes waste
➢ Simple system integration and flexible configurations
➢ Individually factory tested and preserved
➢ Compact footprint saves valuable floor space
➢ Quick delivery and easy installation
➢ 1-year limited warranty
Systems Design parameters
➢ Feed Water Fouling Index: Silt Density Index (SDI) < 3
➢ Inlet Pressure: 25 - 50 PSI (1.4 - 3.5 bar)
➢ Feed Water Temperature: 5 - 40°C
➢ Turbidity: < 1 NTU
➢ pH Tolerance Range: 3 - 11
➢ Salt Rejection: > 97%
➢ Iron: < 0.05 mg/l
➢ Maximum Free Chlorine: 0 ppm
Systems Specifications
|
Aqualitek |
|||
|
Model No. |
Nominal Capacity |
Membrane Size |
Membrane Qty. |
|
TWV-211 |
95/600 |
2.5''x40'' |
1 |
|
TWV-212 |
190/1200 |
2.5''x40'' |
2 |
|
TWV-213 |
285/1500 |
2.5''x40'' |
3 |
|
TWV-411 |
250/1500 |
4''x40'' |
1 |
|
TWV-412 |
500/3000 |
4''x40'' |
2 |
|
TWV-413 |
750/4500 |
4''x40'' |
3 |
|
TWV-414 |
1000/6000 |
4''x40'' |
4 |
|
TWV-415 |
1250/7500 |
4''x40'' |
5 |
|
TWV-416 |
1500/9000 |
4''x40'' |
6 |
|
TWV-418 |
2000/12000 |
4''x40'' |
8 |
For technical support, please contact Aqualitek !
