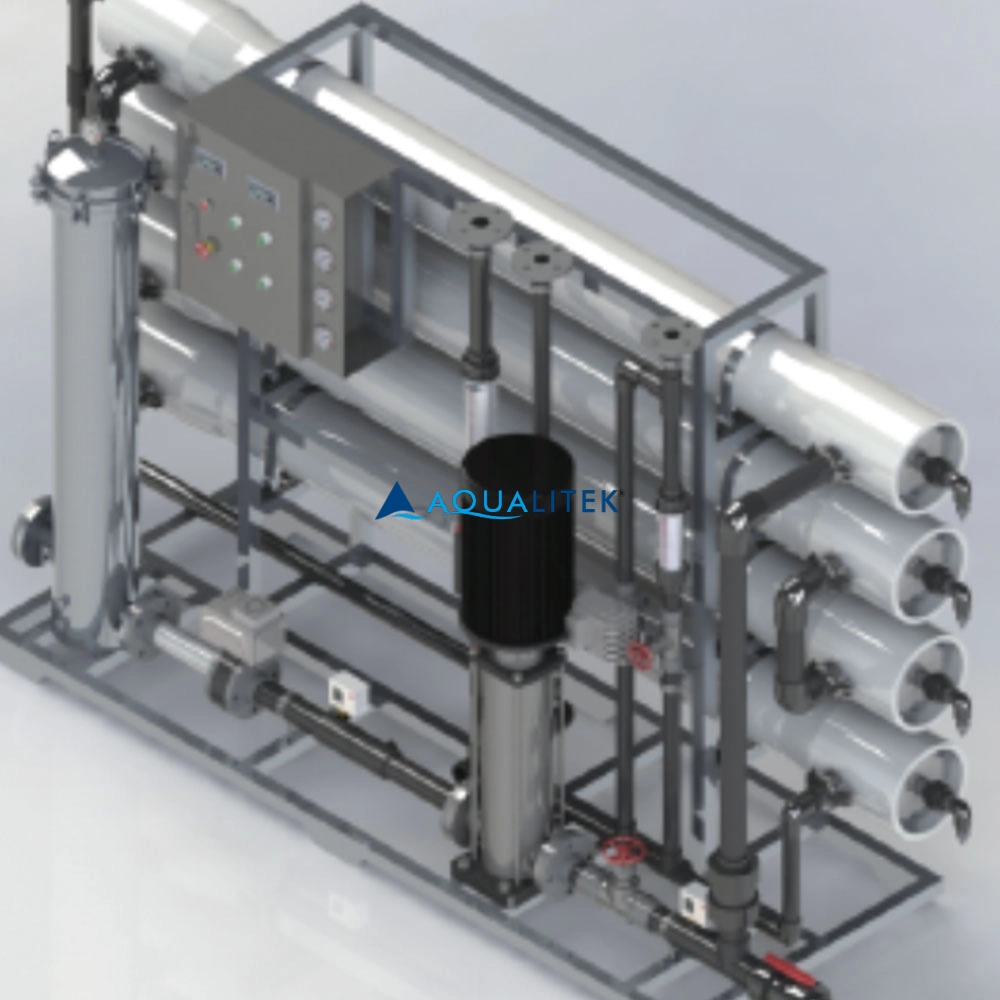

Tap Water Reverse Osmosis (TWRO) Systems TWE Series
TWE-814
TWE series Reverse Osmosis (RO) systems are pre-engineered and pre-assembled units with 8” membrane housings for tap water (lower TDS). The large volumes can help meet your a variety of industrial applications. They are designed for overall superior performance, high recovery rates and offer great savings with low maintenance and operation costs.
01
Standard Features of TWE Series Reverse Osmosis Systems
➢ SS304 corrosion resistant high pressure pump
➢ 8” spiral wound thin-film composite (TFC) membranes (400 ft²)
➢ Fiberglass reinforced plastic (FRP) pressure vessels
➢ Heavy duty 5 micron pretreatment sediment filter
➢ SS304 sediment filter housing
➢ Pre/post filter and pump glycerin filled gauges
➢ Product, reject flow meters / Permeate water quality monitor
➢ Corrosion resistant SS throttling valves / Permeate sample valves
➢ Low pressure and high pressure switches
➢ Heavy duty DIN UPVC piping / Clean–In–Place (CIP) Ports
➢ Stable and corrosion-free SS304 frame
02
RO Controller (PLC)
➢ Low pressure / high pressure switch protections and Auto restart
➢ Pre–Treatment lockout and Level controls
➢ Programmable time delays, set-points and flush mode
➢ Startup flush / timed flush / Shut down flush
03
Available Optional Features of TWE Series Reverse Osmosis Systems
➢ Skid mounted with pre and post treatment (Media filters, etc.)
➢ SS304/316 sanitary pressure vessels / sediment filter housing
➢ Siemens, Mitsubishi, etc. brands PLC, Text panel and HMI
➢ Remote display & RS232, RS485, Modbus PLC output
➢ Raw water / concentrate water quality monitor
➢ High Performance UV sterilizer / Ozone generator
➢ Corrosion-free stainless steel, HDPE, FRP storage tanks (feed, permeate, etc.)
➢ Pressurized storage system / Dosing System / CIP skid-mounted system
➢ Variable-frequency drive (VFD)
➢ PH meter / ORP sensor / Temperature detector / residual Chlorine detector etc.
➢ Mild steel with paint Frame / Caster Wheels / Containerized RO systems
➢ Additional Customization Available on Request
04
Benefits of TWE Series Reverse Osmosis Systems
➢ Low energy and large area TFC membranes to get high flow and ensure water quality.
➢ Prudent flux design and CIP ports to maximize system lifespan
➢ PLC provides user-friendly and flexible programmable controls
➢ Simple system integration and flexible configurations
➢ Compact footprint saves valuable floor space
➢ Quick delivery and easy installation
➢ Individually factory tested and preserved
➢ 1-year limited warranty
Systems Design parameters
➢ Feed Water Fouling Index: Silt Density Index (SDI) < 3
➢ Inlet Pressure: 25 - 50 PSI (1.4 - 3.5 bar)
➢ Feed Water Temperature: 5-40°C
➢ Turbidity: <1 NTU
➢ pH tolerance range: 3-11
➢ Salt Rejection: >97%
➢ Iron: <0.05 mg/l
➢ Maximum Free Chlorine: 0 ppm
➢ All above is for reference only. Temperature changes and feedwater quality, such as high TDS levels, will significantly affect the system’s production capabilities and performance. For your specific feedwater conditions, please contact Aqualitek support.
Systems Specifications
|
Aqualitek |
|||
|
Model No. |
Nominal Capacity |
Membrane Size |
Membrane Qty. |
|
TWE-814 |
4.5/28300 |
8''x40'' |
4 |
|
TWE-815 |
5.6/35400 |
8''x40'' |
5 |
|
TWE-816 |
6.7/42500 |
8''x40'' |
6 |
|
TWE-822 |
4.5/28300 |
8''x40'' |
4 |
|
TWE-823 |
6.7/42500 |
8''x40'' |
6 |
|
TWE-824 |
8.9/56600 |
8''x40'' |
8 |
|
TWE-825 |
11.6/73600 |
8''x40'' |
10 |
|
TWE-826 |
13.4/85000 |
8''x40'' |
12 |
|
TWE-832 |
6.7/42500 |
8''x40'' |
6 |
|
TWE-833 |
10/63700 |
8''x40'' |
9 |
|
TWE-834 |
13.4/85000 |
8''x40'' |
12 |
|
TWE-835 |
16.7/106200 |
8''x40'' |
15 |
|
TWE-836 |
20/127500 |
8''x40'' |
18 |
|
TWE-837 |
23.4/148800 |
8''x40'' |
21 |
|
TWE-843 |
13.4/85000 |
8''x40'' |
12 |
|
TWE-844 |
17.8/113300 |
8''x40'' |
16 |
|
TWE-845 |
22.3/141700 |
8''x40'' |
20 |
For technical support, please contact Aqualitek !
