Multi-cartridge Filter Housing: Stainless Steel Options for Purity

Multi-cartridge Filter Housing: Stainless Steel Options for Purity

Overview of cartridge filter housing and its role in water purification

Cartridge filter housing is a critical component in liquid filtration systems, designed to securely hold and protect filter cartridges while allowing liquids to flow through the filter media. These housings are essential for industries that require reliable filtration solutions to remove contaminants from liquids, such as water treatment, pharmaceuticals, food and beverage processing, chemicals, and industrial applications.

Cartridge filter housings are typically constructed from durable materials like stainless steel, polypropylene, or fiber glass, providing excellent resistance to corrosion and ensuring long-term performance. They are available in a variety of configurations, including single or multi-cartridge designs, to accommodate different flow rates and filtration needs. These housings are engineered to securely seal the filter cartridges, preventing any bypass of unfiltered liquid, ensuring the integrity of the filtration process.

Designed for easy maintenance, cartridge filter housings offer the flexibility to replace or clean filter cartridges quickly, making them a convenient solution for systems requiring regular maintenance. Their efficiency and versatility make them ideal for applications where precise filtration is crucial for improving the quality of liquids, whether for industrial processes, potable water production, or high-purity applications.

Why choose stainless steel for Multi-cartridge Filter Housing?

When selecting a cartridge filter housing, material choice directly affects longevity, sanitation, regulatory compliance and return on investment. Stainless steel multi-cartridge filter housings deliver advantages that are especially important for high-purity and demanding environments:

• Corrosion resistance: 304 and 316L stainless steels resist a wide range of chemicals and are suitable for prolonged contact with water and many process fluids.
• Sanitary finishes: Electro-polished or mechanically polished internal surfaces minimize particle trapping, biofilm formation and support CIP (clean-in-place) processes.
• Mechanical strength: Stainless steel supports higher operating pressures and larger multi-cartridge assemblies without deformation or cracking.
• Temperature tolerance: Suitable for elevated-temperature processes and steam sterilization in some configurations.
• Regulatory acceptance: Frequently required or preferred in pharmaceutical, food and beverage and municipal water contexts due to hygienic properties.

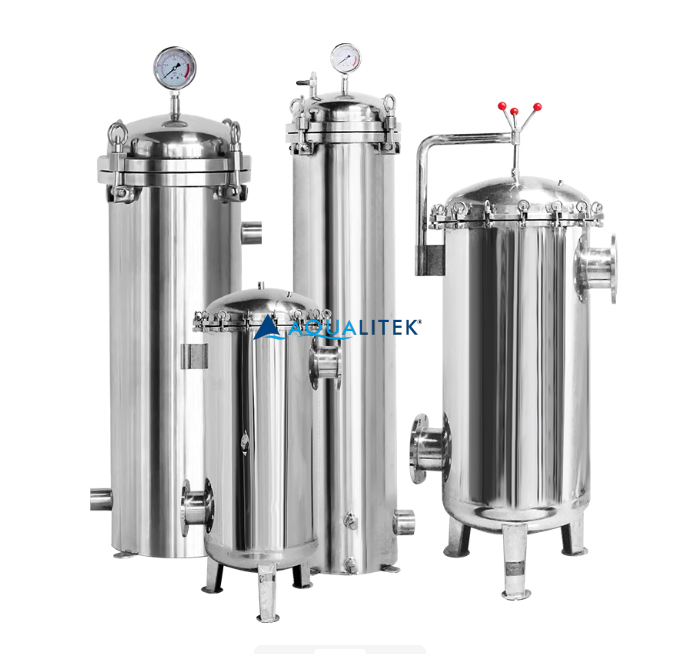

Design features of Multi-cartridge Filter Housing stainless steel micron filter for water purification

The Multi-cartridge Filter Housing stainless steel micron filter for water purification is designed to combine capacity, compact footprint and serviceability. Key design features to consider include:

• Multi-cartridge manifold: Central liquid inlet and outlet manifolds distribute flow evenly across cartridges to maximize media utilization and minimize differential pressure spikes.
• Cartridge lengths and counts: Common cartridge lengths include 10, 20, 30 and 40 inches; housings can be configured for 2, 4, 6, 8 or more cartridges depending on flow requirements.
• Closure type: Quick-open clamp, tri-clamp, bolted flanges or swing bolts. Quick-open designs reduce maintenance downtime for frequent cartridge changes.
• Sealing systems: FDA-grade elastomers (EPDM, Viton, PTFE encapsulated) or metal-to-metal seals where elastomers are not permitted.
• Pressure and code compliance: Options to meet ASME, PED or customer-specified pressure vessel codes for safe operation.
• Sanitary options: Smooth welds, polished internals and drain/vent provisions for hygiene and CIP/SIP procedures.

Micron ratings and selecting the right cartridge filter housing for purity

Understanding micron ratings is essential. Cartridge filter media are rated by the nominal or absolute particle size they remove. Typical micron ranges and their common uses:

• 10–50 μm: Sediment removal, protection of downstream equipment.
• 1–5 μm: Fine particulate control for potable water and pre-treatment.
• 0.1–1 μm: High-purity water, some microbial and colloidal control.
• 0.001–0.2 μm (membrane cartridges): Bacteria and virus reduction, sterile filtration.

Selecting the correct micron rating depends on influent quality, target effluent quality, flow rate and pressure drop limits. Multi-cartridge housings allow parallel cartridge arrangements to achieve higher capacity with low pressure drop while retaining fine filtration performance.

Materials comparison: stainless steel vs polypropylene vs fiberglass

Choosing the right housing material involves corrosion resistance, cost, regulatory needs and lifecycle. The table below summarizes typical trade-offs.

Installation, operation and maintenance best practices for cartridge filter housing

Proper installation and maintenance maximize filter life and system reliability. Practical recommendations:

• Pre-filter sizing: Use sediment or pre-filtration to reduce fouling of fine cartridges.
• Flow direction: Respect inlet/outlet orientation to ensure proper manifold distribution and seal performance.
• Torque and closure checks: Follow manufacturer torque specs for bolted closures; verify clamps and gaskets regularly.
• Differential pressure monitoring: Install gauges upstream and downstream to detect cartridge loading and schedule change-outs before excessive pressure drop.
• Sanitation: For sanitary applications, adopt CIP/SIP procedures and use compatible seals and surface finishes.
• Spare parts and cartridge management: Keep common cartridge types, gaskets and spare housings to minimize downtime.


Validation, documentation and regulatory considerations

For regulated industries, documentation is as important as hardware. Key items:

• Material certificates: Mill test reports for stainless steel (316/316L) and traceability records.
• Surface finish and cleanability records: Ra values for polished internals; passivation certificates.
• Pressure vessel certification: ASME stamp or PED compliance where required.
• IQ/OQ/PQ: Installation, operational and performance qualification protocols for critical processes.
• Microbial challenge test data: For sterile filtration, provide validation data and membrane performance records.


Common applications for Multi-cartridge Filter Housing stainless steel micron filter for water purification

Stainless steel multi-cartridge housings are widely used across industries:

• Municipal and point-of-entry water treatment: High flow filtration to protect downstream equipment and improve drinking water quality.
• Pharmaceutical and biotech: Pre-filtration and final filtration where sanitary construction and validation are required.
• Food and beverage: Protection of pumps, heat exchangers and aseptic processes.
• Chemical process streams: Removing particulates to protect catalysts and ensure product purity.
• Industrial rinse and boiler feed water: Ensuring scale prevention and protecting downstream membranes.


How to size and select a multi-cartridge stainless steel housing

Selection is driven by required flow rate, desired micron rating, allowable pressure drop and service intervals. A simplified selection workflow:

1. Define target effluent quality and acceptable micron rating.
2. Measure or estimate peak and average flow rates at operating temperature and pressure.
3. Estimate cartridge media capacity (flow per cartridge at target micron and acceptable DP).
4. Select housing that accommodates sufficient cartridges to meet flow with a margin for peak demands and staged cartridge change-outs.
5. Verify pressure ratings, inlet/outlet flange types and sanitary finish options against site requirements.
6. Plan for instrumentation (DP gauges) and maintenance access when choosing orientation and mounting arrangements.

Brand advantages: why our Multi-cartridge Filter Housing stainless steel micron filter for water purification stands out

Our Multi-cartridge Filter Housing stainless steel micron filter for water purification is engineered for durability, easy service and regulatory compliance. Key differentiators include:

• 316L stainless steel construction with electropolished interior available for sanitary and high-purity applications.
• Flexible cartridge configurations: supports multiple cartridge lengths (10/20/30/40) and counts to match flows from small process skids to municipal pre-treatment lines.
• Modular manifold design that balances flow across cartridges to maximize media life and reduce head loss.
• Quick-open closures and hygienic seals to minimize downtime and simplify cartridge changes without special tools.
• Options for ASME or PED certification, full material traceability and passivation documentation for regulated industries.
• Field service and engineering support for system sizing, validation and start-up to ensure performance and regulatory readiness.


Cost of ownership: why stainless steel often wins over the lifecycle

Although initial capital cost is higher for stainless steel housings compared to plastic, total cost of ownership often favors stainless steel when factoring in:

• Longer service life and fewer replacements.
• Lower downtime and maintenance costs due to robust construction and easier sanitation.
• Reduced risk of contamination or failure in regulated processes.
• Higher resale or reuse value in facility upgrades.


Frequently Asked Questions (FAQ) about cartridge filter housing and stainless steel options

Q1: What is a Multi-cartridge Filter Housing and when should I use it?

A: A Multi-cartridge Filter Housing holds multiple filter cartridges in a single pressure vessel. Use it when you need high flow capacity, easy cartridge access, and consistent filtration across multiple cartridges, such as in municipal water pre-treatment, industrial process streams, or pharmaceutical pre-filters.

Q2: Why choose stainless steel instead of polypropylene?

A: Choose stainless steel when you need superior chemical resistance, higher pressure and temperature capability, sanitary finishes, and regulatory traceability. Polypropylene is suitable for lower-cost, lower-pressure, and non-sanitary applications.

Q3: How do I determine the right micron rating?

A: Base your micron selection on influent particle size distribution and target effluent quality. For protection of membranes and fine treatment, 1–5 μm or sub-micron cartridges are common. Conduct particle testing and consult cartridge performance curves for accurate sizing.

Q4: How often should cartridges be replaced?

A: Replace cartridges when differential pressure reaches the manufacturer’s recommended limit or when effluent quality degrades. This depends on influent conditions—use DP monitoring and scheduled preventive maintenance.

Q5: Can stainless steel housings be used for steam sterilization?

A: Many stainless steel housings can withstand steam sterilization if designed with appropriate seals and materials. Verify gasket compatibility and manufacturer guidance before performing SIP cycles.

Contact sales / View product

Interested in a Multi-cartridge Filter Housing stainless steel micron filter for water purification? Contact our sales team for sizing assistance, quotes and validation documentation, or view product specifications and datasheets on our website. Reach out to sales at sales@example.com or request a quote through our product inquiry page.
