Runxin Electronic Automatic Control Valve Installation Manual - AQUALITEK
About AQUALITEK
Aqualitek Water Treatment Technologies Co., Ltd. (AQT) is a leading manufacturer based in Guangzhou, China. We provide advanced water treatment systems and high-quality parts for residential, commercial, and industrial use. Our Runxin electronic automatic control valve solutions are engineered for reliable, efficient operation and easy installation.
Product Overview
The Runxin electronic automatic control valve controls backwash, regeneration, and flow sequences in filtration and softening systems. It combines an electronic controller with a durable valve body for precise timing and low maintenance. This manual gives clear, practical steps so you can install and start the valve quickly and safely.
Installation Steps
1. Unpack and Inspect
Unpack the valve and check for visible damage. Confirm all parts are included: valve body, controller, wiring harness, gasket, and mounting screws.
2. Mounting the Valve
Position the valve on the tank connection, ensuring correct alignment of inlet and outlet ports. Use the supplied gasket and tighten evenly to avoid leaks. Do not overtighten plastic parts.
3. Plumbing Connections
Connect inlet, outlet, drain, and brine lines according to system layout. Use suitable fittings and thread tape to ensure a secure, watertight seal. Keep wiring and plumbing separated to reduce interference.
4. Electrical Connection
Connect the power supply and motor wires per the controller label. Ensure power is off while wiring. Follow local electrical codes. After wiring, power on and observe the controller boot sequence.
Safety Precautions
- Turn off power and water supply before installation.
- Avoid installing in direct sunlight or freezing conditions.
- Do not use damaged parts.
- Follow local codes for electrical and plumbing work.
Initial Setup and Testing
Set current time, cycle times, and regeneration parameters on the controller. Run a manual cycle and check for proper sequence and leaks. Adjust settings for system flow and water quality.
Maintenance and Troubleshooting
Regularly check fittings, valves, and controller display. Clean or replace filters as needed. For common issues (no power, incorrect cycle, leaks), consult the troubleshooting table in the full manual or contact AQUALITEK support.
AQUALITEK supports installation questions and spare parts to ensure long-term system reliability.
Detailed display
Our Certifications
CTK20211125002MDAppendix
CTK20211125002MD
Frequently Asked Questions
Do you offer plug-and-play solutions?
Absolutely. We offer containerized membrane systems that are factory-tested, compact, and quick to deploy.
Can your membrane systems treat seawater?
Yes. Our seawater RO systems are designed to handle high salinity with corrosion-resistant materials and energy recovery devices.
What types of water treatment systems does AQT offer?
AQT provides a wide range of water purification solutions, including reverse osmosis (RO) systems, ultrafiltration (UF) systems, nanofiltration (NF) systems, deionization (DI) systems, electro-deionization (EDI) systems, chemical dosing systems, and water softeners. We also supply spare parts and components for water treatment systems.
How do I choose the right water treatment system for my needs?
The choice depends on factors such as water quality, application, flow rate, and purification requirements. Our team of experts can analyze your water source and recommend the most suitable solution for residential, commercial, or industrial applications.

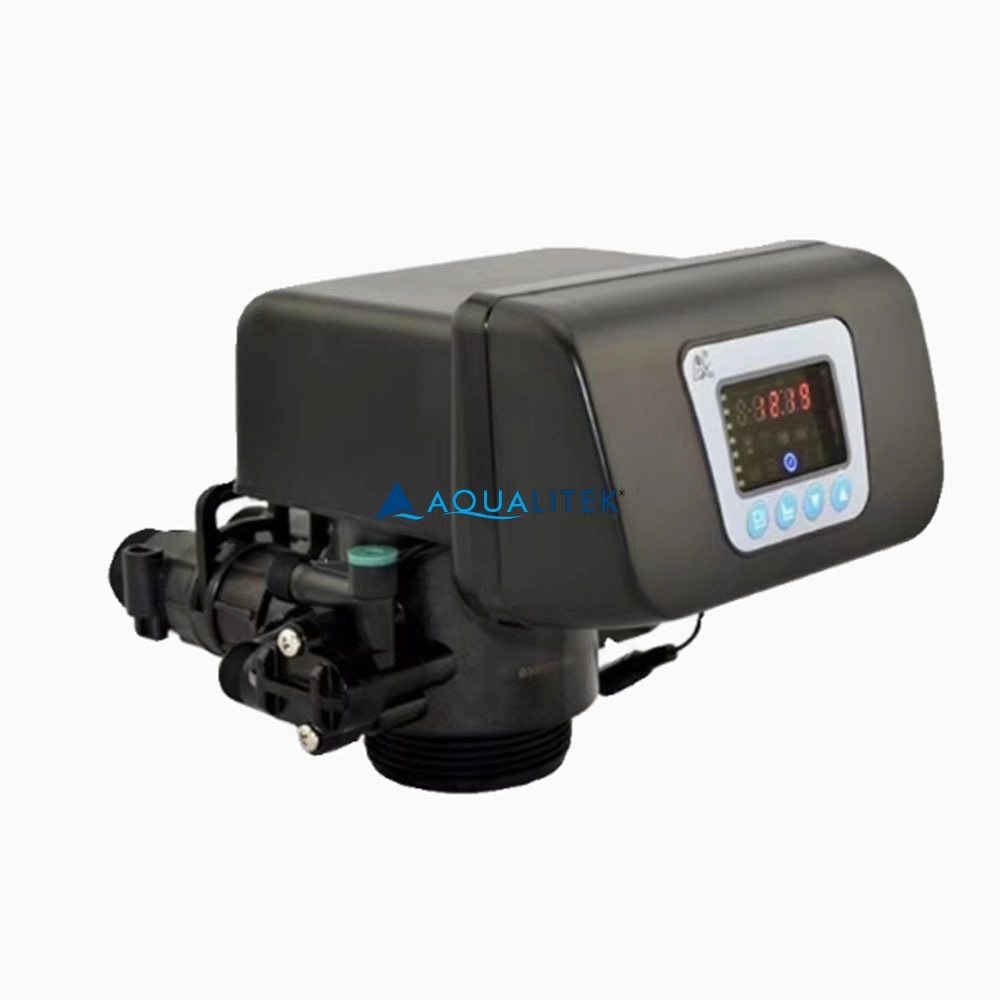

Runxin auto control valve
Multiport Control Valve is a critical component used in water treatment systems, particularly in filters and softeners, to direct water flow through different cycles (e.g., filtration, backwash, rinse, regeneration).

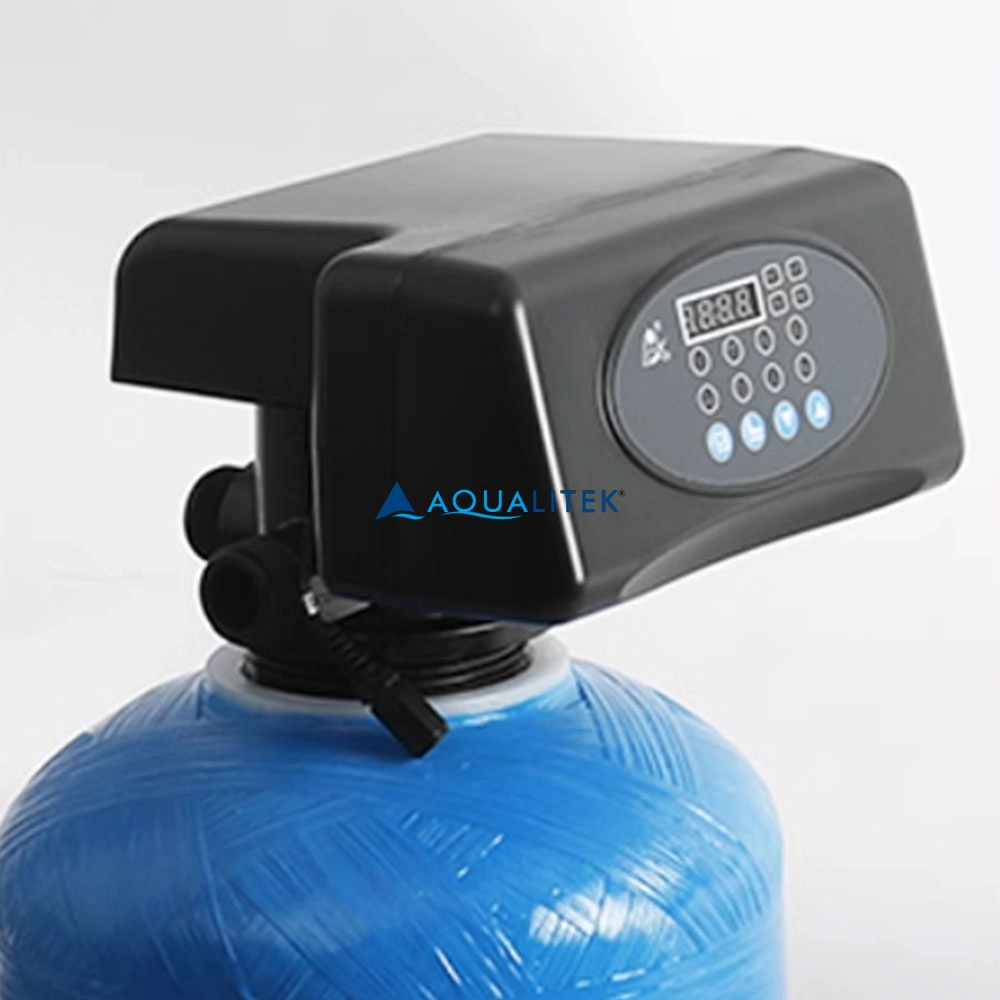

Runxin auto control valve
Multiport Control Valve is a critical component used in water treatment systems, particularly in filters and softeners, to direct water flow through different cycles (e.g., filtration, backwash, rinse, regeneration).

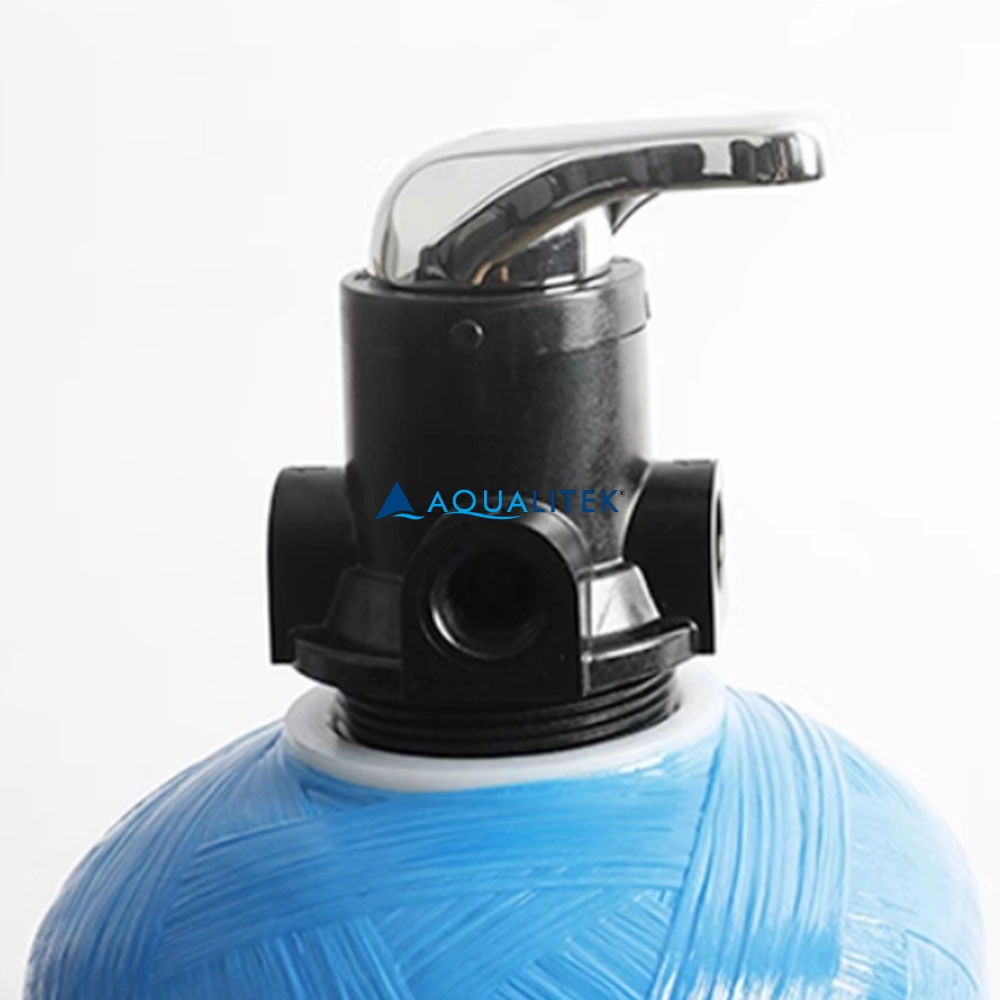

Runxin Manual Filter Control Valves for filter tanks
The Runxin Manual Filter Control Valve is engineered to deliver reliable and cost-effective flow direction control for a wide range of industrial and commercial filter tanks. Renowned for its durability, corrosion resistance, and straightforward operation, this valve is the ideal choice for managing the filtration and backwashing cycles of pressure sand filters, multi-media filters, activated carbon filters, and water softeners.

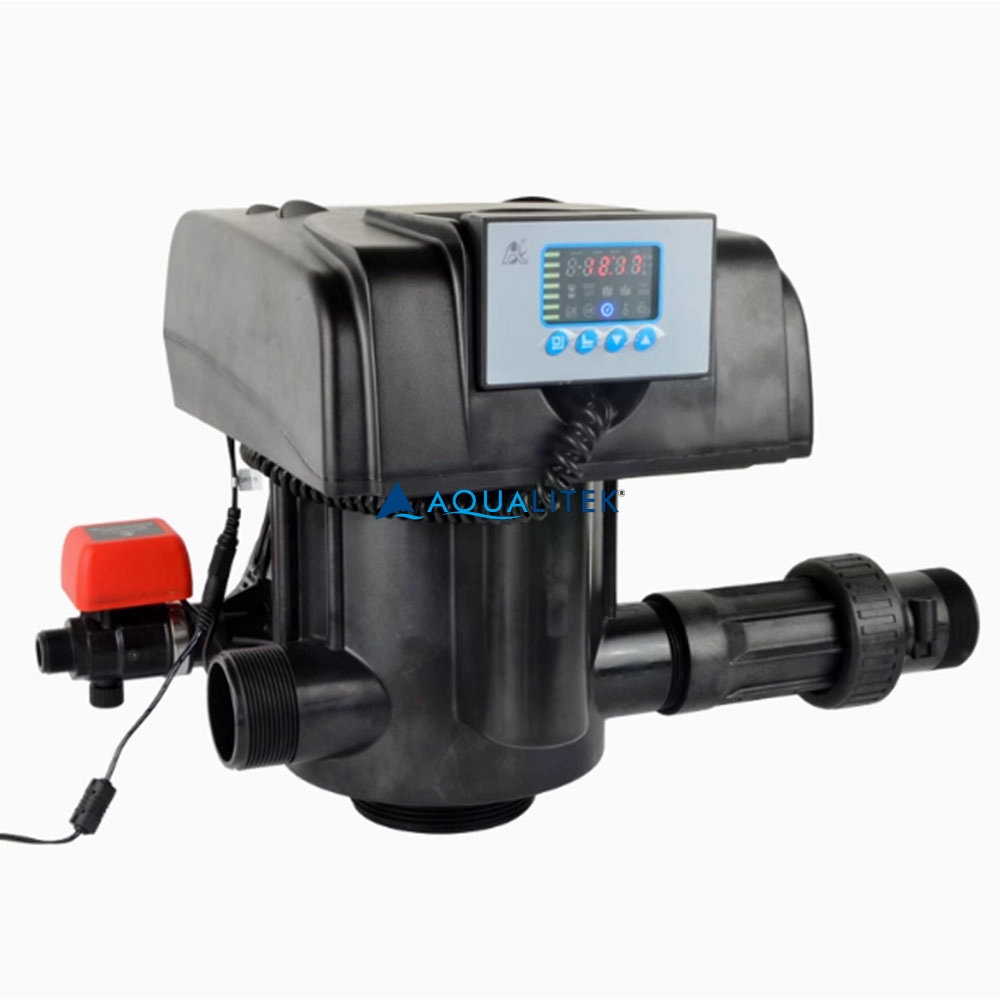

RUNXIN Automatic Filter/Softener Industrial Control Valve
