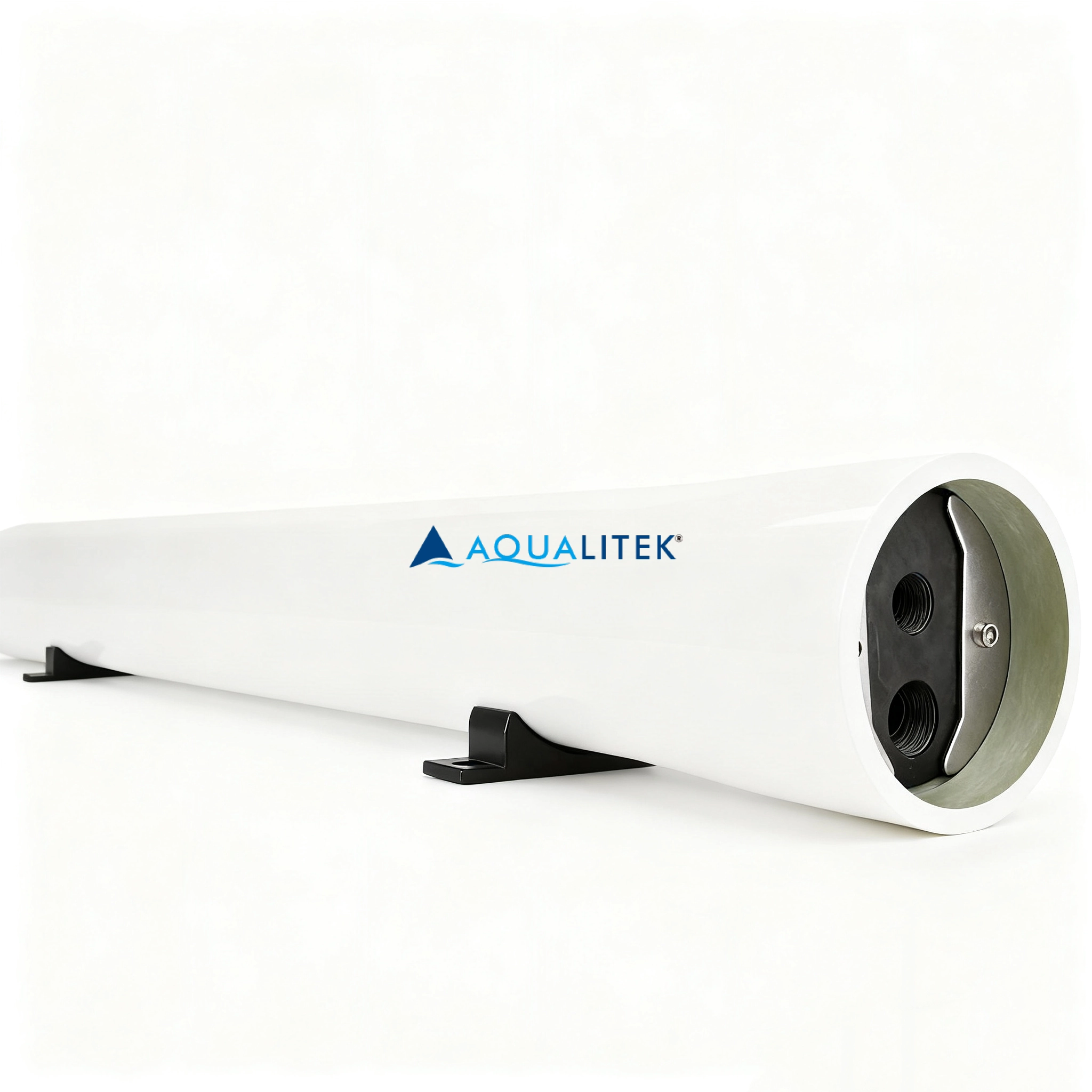

FRP Reverse Osmosis Membrane Housing High-Pressure Explosion-Proof Design for Industrial Watertreatment FRP Series RO Membrane Vessel Housing
For Commercial & Industrial Water Treatment Systems FRP Reverse Osmosis Pressure Vessel Housing Designed for Watertreatment to Extend System Lifespan
AQUALITEK FRP Series Reverse Osmosis Membrane Housing — Fiberglass (FRP) RO Membrane Vessel with high-pressure, explosion-proof design for industrial water treatment. Durable, corrosion-resistant RO membrane housing for reliable plant performance.
FRP (Fiber Reinforced Plastic) Membrane Housing s a pressure vessel designed to hold reverse osmosis (RO), nanofiltration (NF), or ultrafiltration (UF) membrane elements. Made from fiber-reinforced plastic (FRP), these housings combine exceptional strength with lightweight durability, making them ideal for demanding applications such as seawater desalination, industrial wastewater recycling, and pharmaceutical-grade pure water production.Unlike traditional metal housings, FRP resists corrosion from harsh chemicals and saline environments, significantly extending service life while reducing maintenance costs.The modular design allows for flexible configurations, enabling multiple membrane elements to be linked in series for higher efficiency. With pressure ratings exceeding 1000 psi, FRP Membrane Housings ensure reliable performance even in extreme operating conditions, while their smooth interior surface minimizes pressure drop and energy consumption.
Model List
|
Vessel Dia |
Psi |
Connection |
Membrane size |
Number of elements |
|
2.5" |
300 |
Side/End |
2540 |
1-3 |
|
450 |
Side/End |
2540 |
1-3 |
|
|
600 |
Side/End |
2540 |
1-3 |
|
|
800 |
Side/End |
2540 |
1-3 |
|
|
1000 |
Side/End |
2540 |
1-3 |
|
|
4“ |
300 |
Side/End |
4040 |
1-4 |
|
450 |
Side/End |
4040 |
1-4 |
|
|
600 |
Side/End |
4040 |
1-4 |
|
|
800 |
Side/End |
4040 |
1-4 |
|
|
1000 |
Side/End |
4040 |
1-4 |
|
|
8" |
300 |
Side/End |
8040 |
1-7 |
|
450 |
Side/End |
8040 |
1-7 |
|
|
600 |
Side/End |
8040 |
1-7 |
|
|
800 |
Side/End |
8040 |
1-7 |
|
|
1000 |
Side/End |
8040 |
1-7 |
|
|
1200 |
Side/End |
8040 |
1-7 |
Features
-
✔ Pressure Vessel Performance – Provides high-pressure containment (up to 1000+ psi) for stable membrane operation.
-
✔ Durable Protection – Fiberglass-reinforced construction offers superior corrosion resistance (against acids/alkalis/salt spray), ideal for harsh applications like seawater desalination. -
✔ Efficiency Optimization – Precision-engineered flow channels minimize turbulence and pressure drop (15-20% reduction), enhancing water production efficiency. -
✔ Cost-Effective Durability – 30-50% lighter than stainless steel with extended service life (15-20 years) and lower maintenance requirements. -
✔ System Compatibility – Standardized connections support multi-brand membrane elements in single/multiple configurations.
Applications
-
✔Seawater Desalination
Suitable for reverse osmosis (RO) systems, it can withstand high-salinity seawater corrosion and high-pressure operation, ensuring stable freshwater production.
✔Industrial Wastewater Treatment
Used in chemical, electroplating, and pharmaceutical industries for treating high-salinity and high-acidity/alkalinity wastewater, offering long-term stability.
✔Drinking Water Purification
Applied in municipal or community water purification systems to remove impurities and heavy metals, ensuring safe drinking water.
✔Food & Beverage Industry
Provides high-purity water for beverage and dairy production, meeting strict water quality standardst.
✔Power & Energy Industry
Used in boiler feed water and cooling water systems to prevent scaling and corrosion, improving operational efficiency.
✔Pharmaceutical & Electronics Industry
Delivers ultra-pure water for pharmaceuticals and semiconductor manufacturing, ensuring high cleanliness in production processes.
FRP (Fiber Reinforced Plastic) filter tanks are engineered for high-performance water treatment, offering exceptional strength, corrosion resistance, and long-term durability. Ideal for sand filters, carbon filters, and multimedia filtration systems, these lightweight yet robust tanks withstand harsh water conditions, including high pressure and chemical exposure.
