Industrial UV Water Disinfection Systems | High Flow Design
UV Water Sterilizer | Ultraviolet Disinfection System for Clean Drinking Water

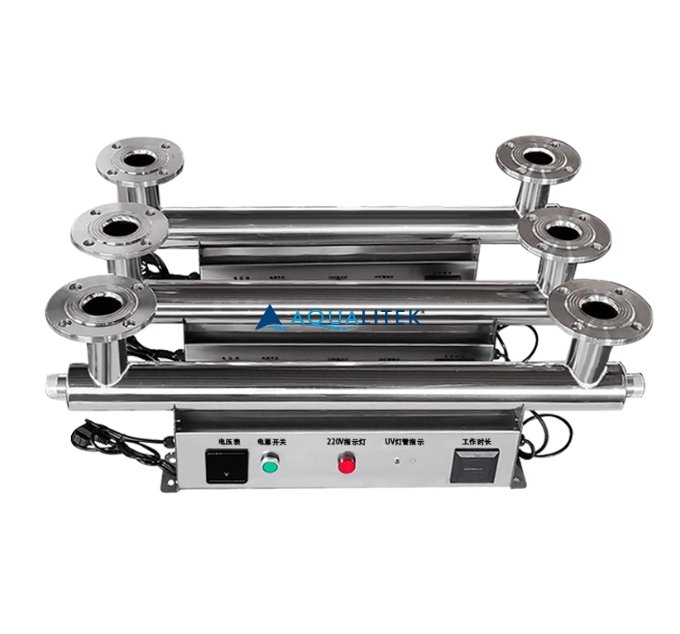

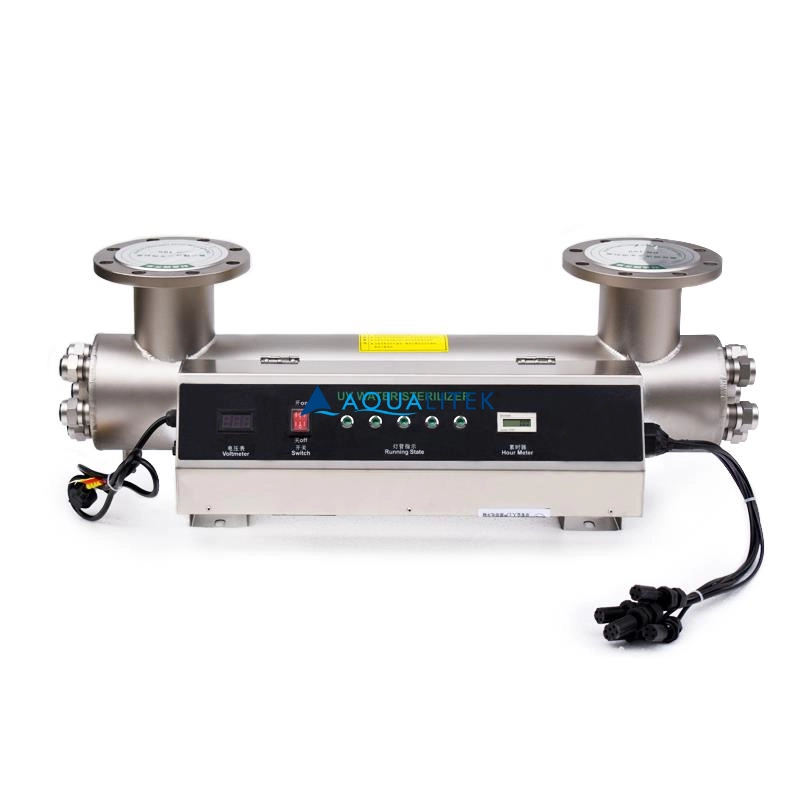

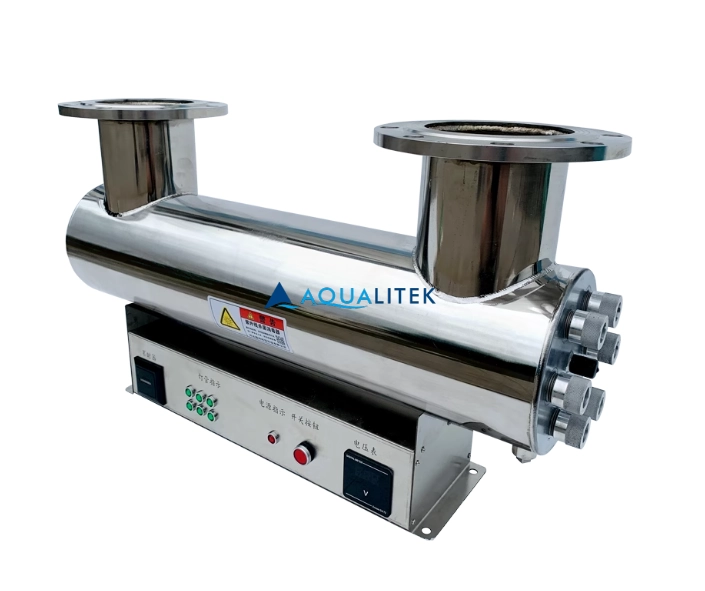

Industrial High Flow UV Water Disinfection Systems
12GPM-48GPM
Description
Industrial UV Water Disinfection Systems
Our high-flow UV water sterilizers provide reliable, chemical-free disinfection for large-scale water treatment applications. Designed for industrial use, these systems effectively eliminate bacteria, viruses, and pathogens, ensuring safe water for manufacturing, food processing, and municipal facilities. Easy to maintain, energy-efficient, and environmentally friendly.
Features
-
✔ High Flow Capacity: Handles very large water volumes (up to thousands of m³/h per unit).
-
✔ Modular Design: Flexible configuration and easy future expansion.
-
✔ Energy Efficiency: High-output UV lamps with electronic ballasts and automatic power adjustment (30%–100%).
-
✔ Optimized Hydraulics: Inline reactor design minimizes pressure drop and ensures uniform UV exposure.
-
✔ Advanced Monitoring & Automation: Real-time UV intensity sensors, temperature probes, and optional automatic chemical-free wiping systems.
-
✔ Durable Construction: Typically made from 316L stainless steel for corrosion resistance and long life.
Model list
|
Model |
Size(mm) |
Water Flow |
In/Outlet |
UV Lamps |
Lifetime(H) |
Material |
|
UVB-110W |
950*108 |
24GPM(5.4M³/Hr) |
1" |
55W*2 |
8000 |
304 |
|
UVB-165W |
950*108 |
36GPM(8.5M³/Hr) |
1.5" |
55W*3 |
8000 |
304 |
|
UVB-220W |
950*133 |
48GPM(10M³/Hr) |
1.5" |
55W*4 |
8000 |
304 |
Applications
Drinking Water
Ensures safe drinking water by killing bacteria, viruses, and parasites.
Wastewater Treatment
Disinfects effluent before discharge to prevent waterborne diseases.
Aquaculture
Maintains clean water in fish farms to prevent disease spread.
Swimming Pools
Reduces chemical use while keeping water safe for swimmers.
Food & Beverage Industry
Treats process water to ensure product safety.
Customization Options
1) Sound alarm: sound alarm is optional
2) Box Size & Shape: As requested.
3) Printing & Branding: Custom logos and print on demand.
4）Graphic customization: As requested.
Features
-
✔ High Flow Capacity: Handles very large water volumes (up to thousands of m³/h per unit).
-
✔ Modular Design: Flexible configuration and easy future expansion.
-
✔ Energy Efficiency: High-output UV lamps with electronic ballasts and automatic power adjustment (30%–100%).
-
✔ Optimized Hydraulics: Inline reactor design minimizes pressure drop and ensures uniform UV exposure.
-
✔ Advanced Monitoring & Automation: Real-time UV intensity sensors, temperature probes, and optional automatic chemical-free wiping systems.
-
✔ Durable Construction: Typically made from 316L stainless steel for corrosion resistance and long life.
Model
|
Model |
Size(mm) |
Water Flow |
In/Outlet |
UV Lamps |
Lifetime(H) |
Material |
|
UVB-110W |
950*108 |
24GPM(5.4M³/Hr) |
1" |
55W*2 |
8000 |
304 |
|
UVB-165W |
950*108 |
36GPM(8.5M³/Hr) |
1.5" |
55W*3 |
8000 |
304 |
|
UVB-220W |
950*133 |
48GPM(10M³/Hr) |
1.5" |
55W*4 |
8000 |
304 |
Applications
Drinking Water
Ensures safe drinking water by killing bacteria, viruses, and parasites.
Wastewater Treatment
Disinfects effluent before discharge to prevent waterborne diseases.
Aquaculture
Maintains clean water in fish farms to prevent disease spread.
Swimming Pools
Reduces chemical use while keeping water safe for swimmers.
Food & Beverage Industry
Treats process water to ensure product safety.
Customization Options
1) Sound alarm: sound alarm is optional
2) Box Size & Shape: As requested.
3) Printing & Branding: Custom logos and print on demand.
4）Graphic customization: As requested.
Our 500 LPH Reverse Osmosis (RO) System is engineered to provide high-quality purified water for commercial applications. Designed with advanced RO technology, durable components, and a user-friendly interface, this system ensures consistent performance, low maintenance, and long-term reliability.
With its compact design and robust skid-mounted frame, it’s an excellent choice for businesses that demand efficiency and quality in water purification.
BWE series Reverse Osmosis (RO) systems are pre-engineered and pre-assembled units with 8” membrane housings for brackish water(higher TDS).The large volumes can help meet your a variety of industrial applications.T hey are designed for overall superior performance, high recovery rates and offer great savings with low maintenance and operation costs.
Multi-Media Filter (MMF)
Our Multi-Media Filter (MMF) is a highly efficient water filtration system designed to remove suspended solids, turbidity, and other impurities from water. Unlike single-media filters, MMFs use multiple layers of filtration media—such as sand, anthracite, and gravel—each with varying sizes and densities.
This layered structure allows for superior filtration, increased dirt-holding capacity, and longer operational cycles.
Multi-Media Filters are widely used in industrial, municipal, and commercial water treatment applications, serving as a crucial pre-treatment step for processes like reverse osmosis (RO) and ultrafiltration (UF). By ensuring cleaner water and reducing maintenance needs, MMFs enhance the overall efficiency of water treatment systems.
AQUALITEK 12TPH Industrial UF Water Treatment Device (UFL-4 Series) delivers high-efficiency, high-throughput ultrafiltration with Automatic Backwash Technology, high fouling-resistance membrane modules for efficient pretreatment and turbidity reduction in industrial and commercial applications.
