Selecting Cartridge Filter Housing for Large-scale Water Systems

Selecting Cartridge Filter Housing for Large-scale Water Systems

Overview: Why cartridge filter housing matters in large-scale water purification

Cartridge filter housing is a critical component in liquid filtration systems, designed to securely hold and protect filter cartridges while allowing liquids to flow through the filter media. These housings are essential for industries that require reliable filtration solutions to remove contaminants from liquids, such as water treatment, pharmaceuticals, food and beverage processing, chemicals, and industrial applications.

For large-scale water systems, the right cartridge filter housing directly affects system uptime, water quality, operating cost, and safety. Choosing an appropriately sized, configured, and constructed housing — such as a Multi-cartridge Filter Housing stainless steel micron filter for water purification — is often more impactful than selecting the cartridge element alone.

Key selection criteria for cartridge filter housing in large-scale applications

When selecting a cartridge filter housing for large-scale systems, prioritize the following factors: flow capacity (GPM or m3/h), micron rating compatibility, number of cartridges (single vs. multi-cartridge), material compatibility, maximum operating pressure and temperature, ease of cartridge replacement, sealing integrity, and applicable certifications (e.g., NSF/ANSI for potable water).

keyword embedded: cartridge filter housing. For large-scale systems, multi-cartridge housings are usually the preferred design because they enable higher flow rates while keeping pressure drop and maintenance manageable.

Product spotlight: Multi-cartridge Filter Housing stainless steel micron filter for water purification

<p>Cartridge filter housing is a critical component in liquid filtration systems, designed to securely hold and protect filter cartridges while allowing liquids to flow through the filter media. These housings are essential for industries that require reliable filtration solutions to remove contaminants from liquids, such as water treatment, pharmaceuticals, food and beverage processing, chemicals, and industrial applications.</p>

</p>

<p>Cartridge filter housings are typically constructed from durable materials like stainless steel, polypropylene, or fiber glass, providing excellent resistance to corrosion and ensuring long-term performance. They are available in a variety of configurations, including single or multi-cartridge designs, to accommodate different flow rates and filtration needs. These housings are engineered to securely seal the filter cartridges, preventing any bypass of unfiltered liquid, ensuring the integrity of the filtration process.</p>

</p>

<p>Designed for easy maintenance, cartridge filter housings offer the flexibility to replace or clean filter cartridges quickly, making them a convenient solution for systems requiring regular maintenance. Their efficiency and versatility make them ideal for applications where precise filtration is crucial for improving the quality of liquids, whether for industrial processes, potable water production, or high-purity applications.</p>

The Multi-cartridge Filter Housing stainless steel micron filter for water purification combines a rugged 316L stainless steel shell, modular multi-cartridge nest, and precision gaskets to deliver reliable service in municipal, industrial, and process water plants. Its design minimizes bypass risk and supports a wide range of cartridge lengths and micron ratings, enabling flexibility for coarse prefiltration to sub-micron polishing.

Sizing cartridge filter housing: flow rate, cartridge count, and surface area

Proper sizing starts with the system flow rate (Q). For cartridge filters, required effective filtration area determines velocity through media and pressure drop. Multi-cartridge housings increase filtration area by placing cartridges in parallel, reducing face velocity and extending cartridge life.

Key steps:

• Calculate peak and average flow rates (GPM or m3/h).
• Choose cartridge type and individual cartridge recommended flow at target micron rating.
• Divide system flow by cartridge allowable flow to get number of cartridges. Add redundancy (normally 10–25%) for safety and to allow staged replacement.
• Verify pressure drop at design flow to ensure pump and system compatibility.

Example: if one 10 pleated cartridge is rated for 10 GPM at a given micron rating without exceeding acceptable delta-P, a 100 GPM system needs at least 10 cartridges (plus redundancy → 11–12 cartridges). That is why multi-cartridge housings (e.g., 6/12/18/24-cartridge vessels) are common in large plants.

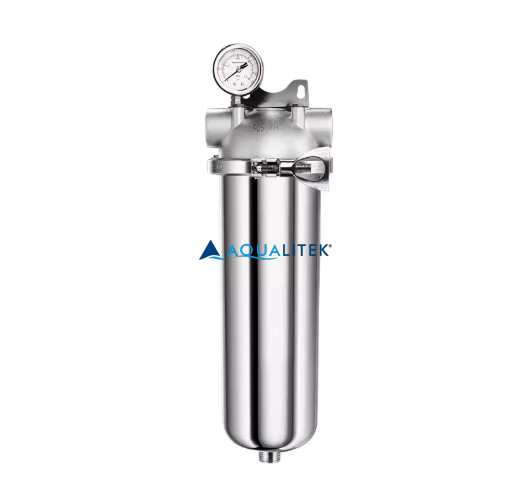

Material selection: stainless steel vs polypropylene for cartridge filter housing

Material choice impacts corrosion resistance, pressure ratings, temperature limits, chemical compatibility, lifespan, and cost. For large-scale, long-life installations, stainless steel (typically 304 or 316L) is frequently preferred because of superior mechanical strength and broad chemical resistance. Polypropylene housings are lighter and lower-cost but have lower temperature and pressure limits.

keyword embedded: cartridge filter housing stainless steel. For water purification at scale, Multi-cartridge Filter Housing stainless steel micron filter for water purification is often the optimal long-term investment due to durability and lower lifecycle risk.

Micron rating, cartridge compatibility and staged filtration strategy

Select micron ratings based on target contaminants. Typical staged filtration strategy for large water systems:

• Stage 1 — 50–20 μm: remove large particulates and protect downstream equipment.
• Stage 2 — 10–5 μm: general suspended solids removal to protect membranes or polishing filters.
• Stage 3 — 1–0.2 μm: polishing and microbial/colloid reduction (often pleated or depth cartridges).

Using multi-cartridge housings in each stage simplifies maintenance: cartridges in one housing can be swapped while others remain in service (with bypass/redundant trains), maintaining plant uptime.

Gasket, sealing and leakage prevention — ensure integrity of cartridge filter housing

A well-designed housing prevents bypass and ensures all water passes through filter media. Pay attention to: gasket material (EPDM, Viton/FKM, PTFE), clamp or bolted-lid design, positive cartridge seating (spring-loaded or fixed nests), and vent/drain arrangements. For potable systems, choose materials that meet NSF/ANSI requirements.

Pressure drop, pump sizing and lifecycle cost analysis

Pressure drop across a cartridge housing depends on cartridge type, micron rating, flow per cartridge, and cleanliness. Low initial cost cartridges with fine micron ratings frequently have higher pressure drops, increasing pump energy consumption and operating costs.

Simple lifecycle cost factors to evaluate:

• Capital cost of housing and cartridges
• Replacement frequency and labor for cartridge changeouts
• Energy cost due to pressure drop and required pumping
• Unplanned downtime risk costs

Example calculation (illustrative): if a tighter cartridge increases average delta-P by 0.5 psi at 200 GPM, the extra hydraulic power P = (ΔP * Q) / pump_eff. Small pressure increases integrated over months can exceed cartridge cost savings.

Installation layout and piping considerations for multi-cartridge housings

Plan for adequate clearance for lid removal and cartridge replacement, provide isolation valves and bypass lines, and incorporate pressure/vacuum reliefs. Large multi-cartridge vessels can be heavy; design structural support and consider skid-mounted preassembled filter banks to simplify commissioning.

Maintenance best practices and operational reliability

Create a scheduled maintenance plan: monitor differential pressure, replace cartridges before excessive delta-P, verify gasket condition at each service, and perform periodic integrity inspections. For systems requiring continual service, implement parallel housings so one unit can be serviced without taking the entire train offline.

Certifications and validation: meeting potable water and industrial standards

For potable water or food and beverage applications, require housings and cartridges that meet relevant standards: NSF/ANSI 61 for drinking water system components, NSF/ANSI 372 for lead content, and, where applicable, materials compatible with FDA food contact guidance. In pharmaceutical and biotech, validate cleaning procedures, materials of construction, and documentation according to regulatory needs.

Case example: designing a multi-cartridge stainless steel system for a 500 m3/day plant

Scenario: A water treatment plant with 500 m3/day (~2083 GPH, ~34.7 GPM average). Design points:

• Peak flow design: assume 1.5x average = ~52 GPM.
• Cartridge selection: 10 pleated 5 μm rated at 5–8 GPM each; choose 8 cartridges to keep per-cartridge flow <7 GPM, with 2 extra for redundancy → 10 cartridges total.
• Choose 316L multi-cartridge housing rated for 150 psi to future-proof and allow CIP with hot water.
• Plan for parallel trains if service continuity is critical — two identical housings of 6 cartridges each provide n+1 redundancy and simplified maintenance.

This approach balances capital cost, operational reliability, and cartridge life while keeping pressure drop in an acceptable range.

Brand advantages: why choose our Multi-cartridge Filter Housing stainless steel micron filter for water purification

Our Multi-cartridge Filter Housing stainless steel micron filter for water purification is engineered for large-scale operations with the following advantages:

• 316L stainless steel construction for exceptional corrosion resistance and long service life.
• Modular multi-cartridge nests available in common counts (6, 8, 10, 12, 18, 24) enabling precise sizing for flow and redundancy.
• Wide compatibility with 10, 20, 30 and 40 cartridge lengths and a broad range of micron ratings.
• Designed for minimal bypass risk with positive cartridge seating and proven gasket technology (EPDM/Viton/PTFE options).
• Engineered for ease of maintenance: quick-release clamps, top-lift lids, and integrated vent/drain ports reduce downtime.
• Manufactured to support NSF/ANSI validation and customizable for specific regulatory requirements.

These features translate into reduced total cost of ownership, predictable maintenance cycles, and higher process uptime for critical water systems.

Frequently Asked Questions (FAQ)

Q1: How do I choose between a single-cartridge and a multi-cartridge filter housing?

A: For low flow applications a single-cartridge housing can be sufficient. For large-scale systems, multi-cartridge housings are preferred because they increase filtration area, lower face velocity and pressure drop, allow redundancy, and simplify staged cartridge changes without shutting the process down.

Q2: What micron rating should I use for prefiltration vs polishing?

A: Use coarse ratings (20–50 μm) for prefiltration to remove large particulates, medium ratings (5–10 μm) for general solids removal, and fine ratings (≤1 μm) for polishing. Select cartridge type based on contaminant size, chemical compatibility, and target water quality.

Q3: Are stainless steel housings necessary for all water purification systems?

A: Not always. Stainless steel housings are recommended when high pressure, high temperature, aggressive cleaning (CIP/steam), or greater longevity and structural strength are required. Polypropylene housings may be sufficient and more economical for lower-pressure, ambient-temperature systems.

Q4: How often should cartridges be replaced?

A: Replace cartridges when differential pressure reaches the manufacturer’s recommended limit, when flow falls below process needs, or on a scheduled basis determined by water quality and historical cartridge life. Monitoring ΔP gives the best indication of end-of-life.

Q5: Do I need NSF/ANSI certification for cartridge housings?

A: For potable water and food applications, NSF/ANSI 61 (drinking water system components) and other local regulations may apply. Check regulatory requirements for your jurisdiction and application.
