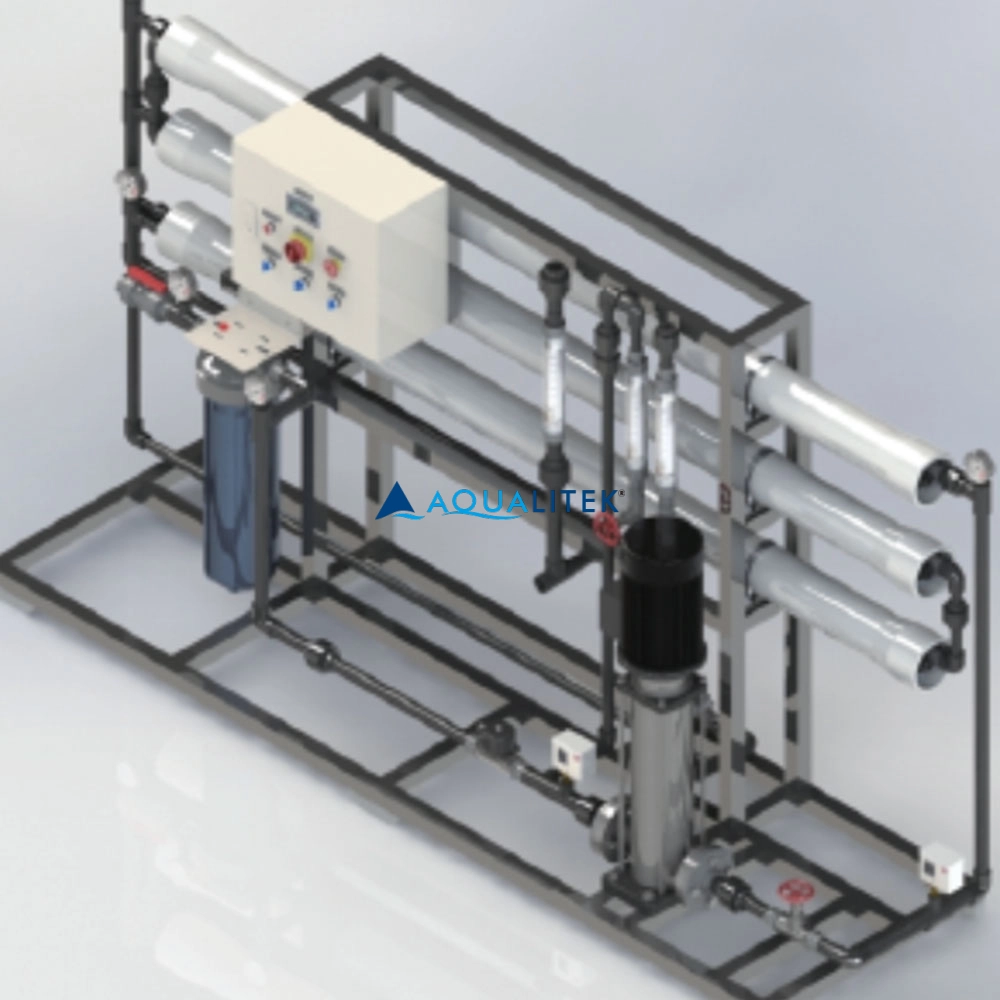

Nanofiltration (NF) Systems NFS Series
Nanofiltration is a speciality membrane process which rejects particles in the approximate size range of 1 nanometer. It reliably remove color and total organic carbon (TOC) from surface water, hardness or radium from well water, overall reduce total dissolved solids (TDS).
NFS series nanofltration systems are pre-engineered and pre-assembled units to produce clean, purified water with nanofltration membranes for fresh groundwater and surface water. The multiple volumes can help meet your a variety of commercial applications such as drinking water treatment. They are designed for remove a high percentage of TOC and THM precursors while having a medium to high salt passage; medium hardness passage.
01
Standard Features of NFS Series Nanofltration Systems
➢ Reliable and durable 2.5”/4” TFC spiral wound nanofiltration membranes
➢ Corrosion-free 304 SS Feed booster pump
➢ Fiberglass reinforced plastic (FRP) pressure vessels
➢ High duty micro sediment filter / DIN UPVC pipework
➢ Product water quality monitor
➢ Corrosion resistant SS concentrate and recirculation throttling valves
➢ Pre/post filter and pump glycerin filled gauges
➢ Low pressure and high pressure switches
➢ Product, reject and recirculation flow meters
➢ Stable and corrosion-free stainless steel frame
02
Available Optional Features of NFS Series Nanofltration Systems
➢ Skid mounted with pre and post treatment (Media filters, etc.)
➢ 316L SS Feed booster pump / sanitary pressure vessels
➢ CIP skid-mounted system / Dosing system
➢ Raw water / concentrate water quality monitor
➢ Micro-controller / Relays design / PLC control panel
➢ Siemens, Mitsubishi, etc brands PLC, Text panel and HMI
➢ Remote display & RS232, RS485, Modbus PLC output
➢ High Performance UV sterilizer / Ozone generator
➢ Corrosion-free stainless steel, HDPE, FRP storage tanks
➢ Variable-frequency drive (VFD)
➢ PH meter / ORP sensor / Temperature detector / Online turbidity monitor / residual Chlorine detector, etc.
➢ Mild steel with paint Frame / Caster Wheels / Containerized NF systems
➢ Additional Customization Available on Request
03
Benefits of NFS Series Nanofltration Systems
➢ Low energy and large area nanofiltration membranes to get high flow and ensure water quality.
➢ Prudent flux design and CIP ports to maximize system lifespan
➢ Reject recycle maximizes water recovery and minimizes concentrate water
➢ Simple system integration and flexible configurations
➢ Compact footprint saves valuable floor space
➢ Quick delivery and easy installation
➢ Individually factory tested and preserved
➢ 1 year limited warranty
Systems Design parameters
➢ Feed Water Fouling Index: Silt Density Index (SDI) < 3
➢ Inlet Pressure: 25 - 50 PSI (1.4 - 3.5 bar)
➢ Feed Water Temperature: 5 - 40°C
➢ Feed Water TDS: < 1000 ppm
➢ Turbidity: < 1 NTU
➢ pH Tolerance Range: 3 - 11
➢ Salt Rejection: > 97%
➢ Iron: < 0.05 mg/l
➢ Maximum Free Chlorine: 0 ppm
➢ If any of the feed water parameters are not within the limits given, contact Aqualitek Technical Support
Systems Specifications
|
Aqualitek |
||||
|
Model No. |
Nominal Capacity |
Nominal Capacity |
Membrane Size |
Membrane Qty. |
|
NFS-211 |
1.6/0.4 |
0.095/600 |
2.5''x40'' |
1 |
|
NFS-212 |
3.2/0.8 |
0.190/1200 |
2.5''x40'' |
2 |
|
NFS-213 |
4.7/1.25 |
0.285/1800 |
2.5''x40'' |
3 |
|
NFS-411 |
4.2/1.1 |
0.25/1590 |
4''x40'' |
1 |
|
NFS-412 |
8.3/2.2 |
0.5/3170 |
4''x40'' |
2 |
|
NFS-413 |
12.5/3.3 |
0.75/4760 |
4''x40'' |
3 |
|
NFS-414 |
16.7/4.4 |
1/6350 |
4''x40'' |
4 |
|
NFS-415 |
20.8/5.5 |
1.25/7940 |
4''x40'' |
5 |
|
NFS-416 |
25/6.6 |
1.5/9520 |
4''x40'' |
6 |
|
NFS-423 |
|
|
|
|
|
NFS-424 |
33.4/8.8 |
2/12700 |
4''x40'' |
8 |
|
NFS-433 |
37.5/9.9 |
2.25/14285 |
4''x40'' |
9 |
|
NFS-425 |
41.7/11 |
2.5/15870 |
4''x40'' |
10 |
For technical support, please contact Aqualitek !
