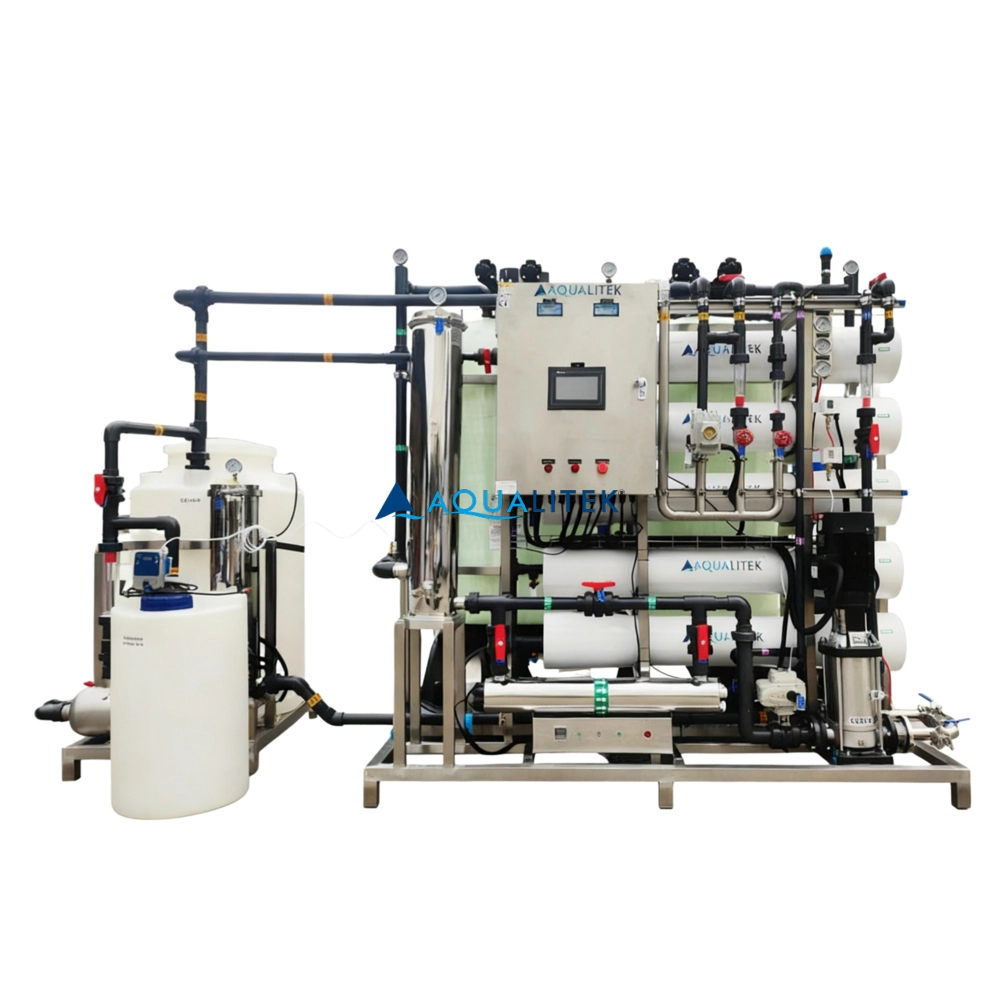

Brackish Water Reverse Osmosis (BWRO) Systems BWE Series
BWE Series
BWE series Reverse Osmosis (RO) systems are pre-engineered and pre-assembled units with 8” membrane housings for brackish water(higher TDS).The large volumes can help meet your a variety of industrial applications.T hey are designed for overall superior performance, high recovery rates and offer great savings with low maintenance and operation costs.
01
Standard Features of BWE Series Reverse Osmosis Systems
➢ Stainless steel corrosion resistant high pressure pump
➢ 8” spiral wound thin-film composite (TFC) membranes (400 ft²)
➢ Fiberglass reinforced plastic (FRP) pressure vessels
➢ Heavy duty 5 micron pretreatment sediment filter
➢ Stainless steel sediment filter housing
➢ Pre/post filter and pump glycerin filled gauges
➢ Permeate water quality monitor
➢ Corrosion resistant stainless steel throttling valves
➢ Low pressure and high pressure switches
➢ Product, reject flow meters / permeate sample valves
➢ Heavy duty stainless steel piping for high pressure parts
➢ Clean–In–Place (CIP) ports
➢ Stable and corrosion-free stainless steel frame
02
RO Control Panel(PLC)
➢ Low pressure / high pressure switch protections and auto restart
➢ Pre-treatment lockout and level controls
➢ Programmable time delays, set-points, and flush mode
➢ Startup flush / timed flush / shut down flush
03
Available Optional Features of BWE Series Reverse Osmosis Systems
➢ Skid mounted with pre and post treatment (media filters, etc.)
➢ Stainless steel sanitary pressure vessels and sediment filter housing
➢ Siemens, Mitsubishi, etc. brands PLC, text panel, and HMI
➢ Remote display & RS232, RS485, Modbus, etc. PLC output
➢ High performance UV sterilizer / ozone generator
➢ Corrosion-free stainless steel, HDPE, FRP storage tanks (feed, permeate, and flush)
➢ Pressurized storage system / dosing system / CIP system
➢ Variable-frequency drive (VFD)
➢ pH meter / ORP sensor / temperature detector / residual chlorine detector, etc.
➢ Mild steel with paint frame / caster wheels
➢ Additional customization available on request
04
Benefits of BWE Series Reverse Osmosis Systems
➢ Low energy TFC membranes to get high flow and ensure water quality
➢ Prudent flux design and CIP ports to maximize system lifespan
➢ PLC provides user-friendly and flexible programmable controls
➢ Simple system integration and flexible configurations
➢ Compact footprint saves valuable floor space
➢ Quick delivery and easy installation
➢ Individually factory tested and preserved
➢ 1-year limited warranty
Systems Design parameters
➢ Feed Water Fouling Index: Silt Density Index (SDI) < 3
➢ Inlet Pressure: 25 - 50 PSI (1.4 - 3.5 bar)
➢ Feed Water Temperature: 5 - 40°C
➢ Turbidity: < 1 NTU
➢ pH Tolerance Range: 3 - 11
➢ Salt Rejection: > 97%
➢ Iron: < 0.05 mg/l
➢ Maximum Free Chlorine: 0 ppm
Systems Specifications
|
Aqualitek |
|||
|
Model No. |
Nominal Capacity |
Membrane Size |
Membrane Qty. |
|
BWE-814 |
4.3/27400 |
8''x40'' |
4 |
|
BWE-815 |
5.4/34200 |
8''x40'' |
5 |
|
BWE-816 |
6.5/41100 |
8''x40'' |
6 |
|
BWE-822 |
4.3/27400 |
8''x40'' |
4 |
|
BWE-823 |
6.5/41100 |
8''x40'' |
6 |
|
BWE-824 |
8.6/54800 |
8''x40'' |
8 |
|
BWE-825 |
10.7/68500 |
8''x40'' |
10 |
|
BWE-826 |
12.9/82200 |
8''x40'' |
12 |
|
BWE-832 |
6.5/41100 |
8''x40'' |
6 |
|
BWE-833 |
9.7/61600 |
8''x40'' |
9 |
|
BWE-834 |
12.9/82200 |
8''x40'' |
12 |
|
BWE-835 |
16.2/102700 |
8''x40'' |
15 |
|
BWE-836 |
19.4/123300 |
8''x40'' |
18 |
|
BWE-837 |
22.7/143800 |
8''x40'' |
21 |
|
BWE-843 |
12.9/82200 |
8''x40'' |
12 |
|
BWE-844 |
17.2/109600 |
8''x40'' |
16 |
|
BWE-845 |
21.6/137000 |
8''x40'' |
20 |
|
BWE-846 |
25.9/164000 |
8''x40'' |
24 |
|
BWE-847 |
30.2/191800 |
8''x40'' |
28 |
|
BWE-849 |
38.8/246600 |
8''x40'' |
36 |
|
BWE-8412 |
51.8/328000 |
8''x40'' |
48 |
For technical support, please contact Aqualitek !
