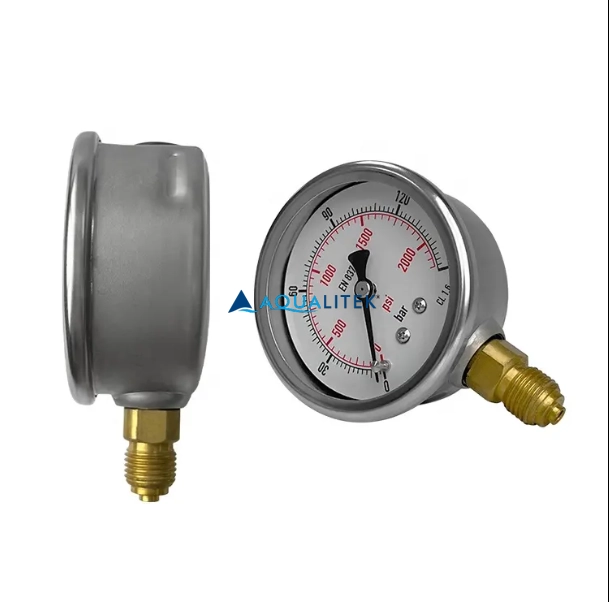

Panel type and inline type pressure gauge
A pressure gauge is an essential instrument used to measure and display the pressure of gases or liquids in a system. It plays a crucial role in ensuring safety, efficiency, and accuracy in various industrial, commercial, and domestic applications.
These gauges work on different principles, including mechanical and digital sensor-based technologies. They help monitor and control pressure levels to prevent equipment failures, optimize performance, and ensure compliance with safety standards.
Description
A pressure gauge is an essential instrument used to measure and display the pressure of gases or liquids in a system. It plays a crucial role in ensuring safety, efficiency, and accuracy in various industrial, commercial, and domestic applications.
These gauges work on different principles, including mechanical and digital sensor-based technologies. They help monitor and control pressure levels to prevent equipment failures, optimize performance, and ensure compliance with safety standards.
Features
1. Pressure Range Compatibility
· Available in different pressure ranges (e.g., 0-100 PSI, 0-300 PSI) to suit various water purification systems.
· Ensures accurate readings for both low-pressure and high-pressure applications.
2. Durable Construction
· Made from corrosion-resistant materials like stainless steel, brass, or reinforced plastic.
· Suitable for prolonged exposure to water and harsh environmental conditions.
3. Accuracy and Precision
· Provides high-precision readings with minimal deviation.
· Some models come with ±1% to ±2% accuracy for critical applications.
4. Easy-to-Read Display
· Large, clear dial with numerical markings for easy visibility.
· Some models include color-coded zones to indicate safe and unsafe pressure levels.
5. Connection Options
· Available with different connection types, such as NPT (National Pipe Thread) or BSP (British Standard Pipe), for easy installation.
· Bottom or back-mounted designs to fit various system configurations.
Technical data
|
Pressure Guage |
|
|
Accuracy |
±1%,±1.6%,±2.5% |
|
Pressure Range |
As your request |
|
Normal Size |
2.5"(63mm), 4"(100mm),6"(150mm) |
|
Connection |
1/8", 1/4", 3/8", 1/2", PT, BSP, NPT, etc. |
|
Liquid |
glycerin or silicone |
|
Connection material |
Brass or stainless steel |
|
Window |
Glass or plastic |
|
Operating temperature |
-30°C to +60°C |
|
Customized support |
OEM |
|
Warranty |
12months |
Application
· Manufacturing Plants: Used in hydraulic and pneumatic systems to monitor pressure.
· Oil & Gas Industry: Measures pressure in pipelines, tanks, and refineries.
· Power Plants: Used in boilers, turbines, and cooling systems to regulate pressure.
