How Flow Rates and Pressures Are Managed in Multi-Stage RO Systems
Multi-stage reverse osmosis (RO) systems are widely used in industrial water treatment to maximize recovery and optimize energy consumption. Each stage in an RO system performs a specific function — as permeate is extracted, the feedwater becomes more concentrated and requires higher pressure to keep flowing.
Understanding flow distribution, pressure requirements, and booster pump applications is essential for achieving stable and efficient operation.
Flow & Pressure Configuration Between RO Stages
�� 1st Stage: Highest Flow, Lowest Concentration
•Feed water enters with full system pressure
•Produces the highest permeate flow
•Concentrate goes to the next stage
Typical permeate share: 50–70% of total production
�� 2nd Stage: Lower Flow, Higher Concentration
•Salt concentration increases → osmotic pressure rises
•Requires more input pressure for acceptable permeate production
Consequences:
•Permeate flow decreases
•Scaling & fouling risk increases
�� 3rd Stage & Beyond (if applicable)
Used in high-recovery plants:
•Very high salinity concentrate
•Significant pressure drop along feed channels
•Requires design caution to prevent membrane damage
�� Key Design Principles
|
Parameter |
Trend After Each Stage |
Design Goal |
|
Permeate flow |
⬇ Decreases |
Maintain productivity |
|
Feed salinity |
⬆ Increases |
Prevent scaling |
|
Osmotic pressure |
⬆ Increases |
Ensure enough feed pressure |
|
Fouling risk |
⬆ Increases |
Maintain cleaning intervals |
|
Pressure after module |
⬇ Drops |
Use booster pump if necessary |

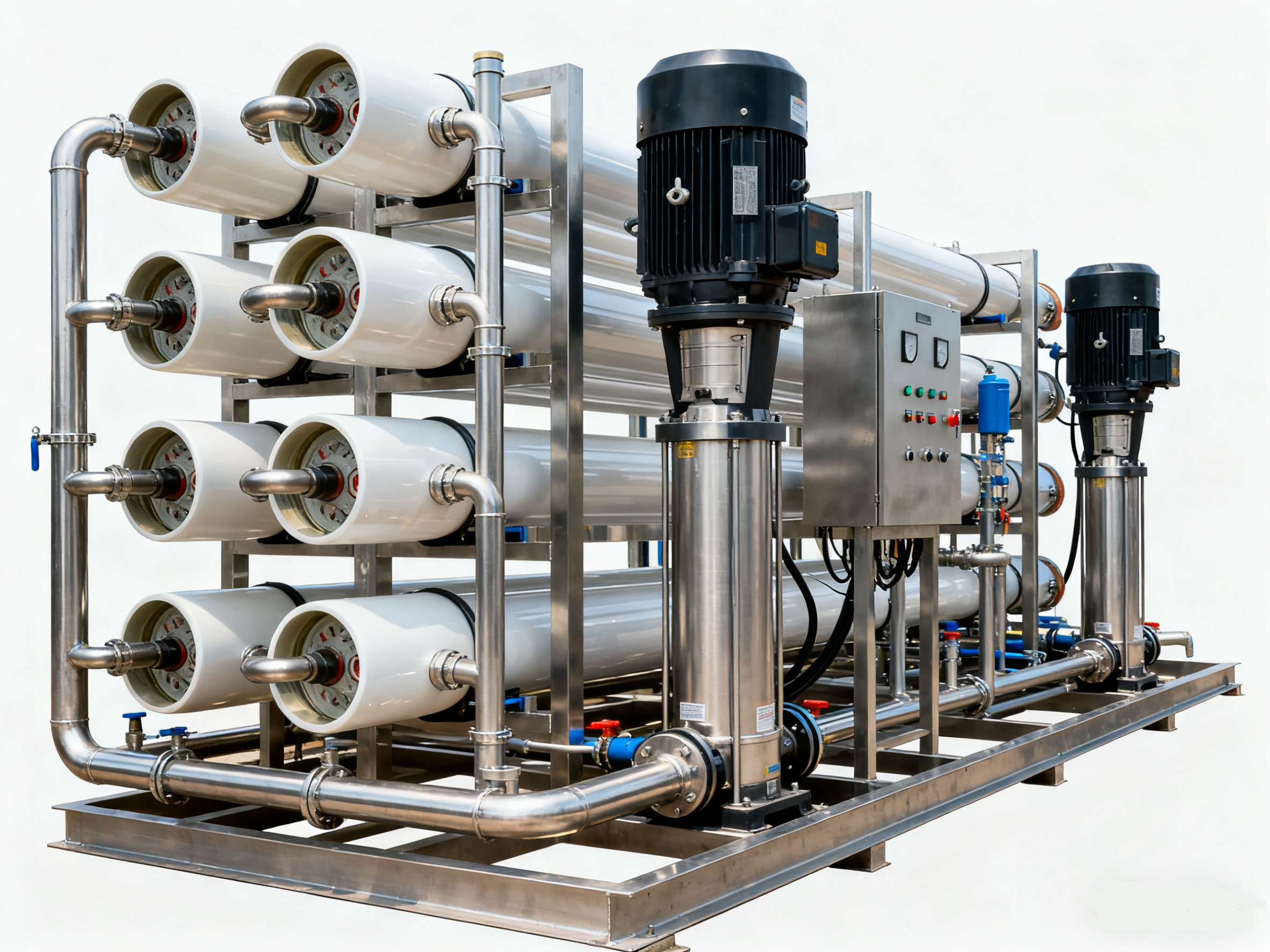

What Is an Interstage Booster Pump?
An interstage booster pump is installed between RO stages to increase pressure before water enters the next stage.
Why It’s Needed
✔ Compensates for pressure loss in the first stage
✔ Provides additional driving pressure to overcome higher osmotic pressure
✔ Increases final stage permeate production
✔ Prevents concentration polarization and scaling
When Do You Use One?
|
Condition |
Why Booster Pump is Required |
|
Recovery rate > 75% |
Concentrate too saline → needs more pressure |
|
Long pressure vessel arrays |
Large frictional pressure loss |
|
High-salinity feedwater (e.g., seawater) |
High osmotic pressure |
|
Multi-pass / multi-stage design |
Maintain permeate productivity |
|
Membrane fouling observed |
Avoid stagnation zones |
�� Most common in: large industrial BWRO and SWRO systems
Example: 2-Stage RO Pressure Configuration
|
Parameter |
First Stage |
Second Stage |
|
Feed Pressure |
14 bar |
+2 bar (booster) |
|
Permeate % (of total) |
65% |
35% |
|
Salinity |
Low |
Higher |
|
Goal |
Maximize energy efficiency |
Maintain final quality & yield |
Engineering Best Practices
|
Best Practice |
Benefit |
|
Balance recovery between stages |
Avoid overloading final stage |
|
Maintain adequate crossflow velocity |
Reduce scaling & biofouling |
|
Use online pressure & flow monitoring |
Predictive maintenance |
|
Optimize CIP schedule |
Extend membrane lifespan |
|
Evaluate LSI/SDI before each stage |
Proper anti-scaling dosing |
✅ Correct configuration = Long-lasting membranes + Low OPEX
Conclusion
A well-designed multi-stage RO system must:
✔ Manage decreasing flow and increasing osmotic pressure
✔ Use interstage boosters when pressure losses affect productivity
✔ Balance recovery, prevent fouling, and optimize energy usage
The right staging strategy is essential for stable, efficient, and cost-effective RO performance.
