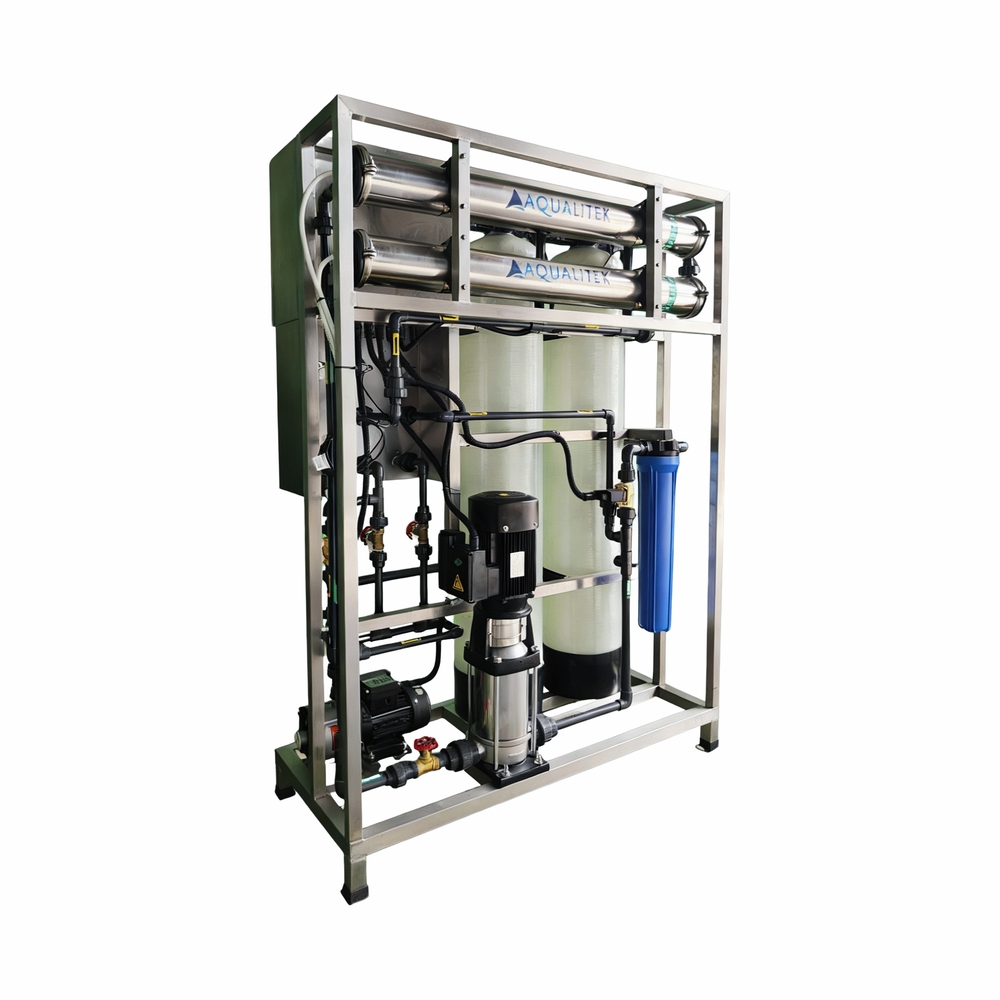

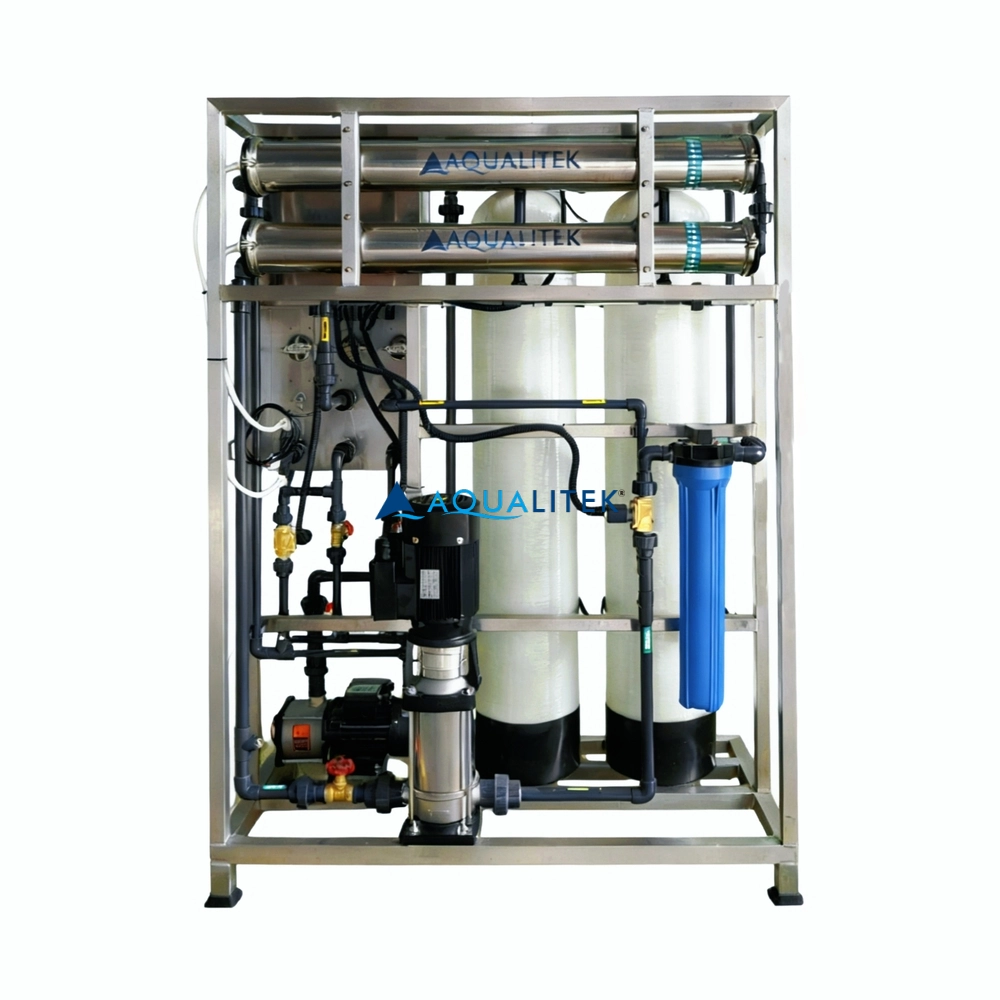

Brackish Water Reverse Osmosis (BWRO) Systems BWF Series
BWF Series
BWF series Reverse Osmosis (RO) systems are pre-engineered and pre-assembled units with 4” membrane housings（multiple elements type)for brackish water(higher TDS).The medium large volumes can help meet your a variety of industrial and commercial applications. They are designed for overall superior performance, high recovery rates and offer great savings with low maintenance and operation costs.
01
Standard Features of BWF Series Reverse Osmosis Systems
➢ Stainless steel corrosion resistant high pressure pump
➢ 4” spiral wound thin-film composite (TFC) membranes
➢ Fiberglass reinforced plastic (FRP) pressure vessels
➢ Heavy duty 5 micron pretreatment sediment filter
➢ Pre/post filter and pump glycerin filled gauges
➢ Heavy duty Stainless steel piping for high pressure parts
➢ Corrosion resistant Stainless steel throttling valves
➢ Low pressure and high pressure switches
➢ Product, reject flow meters/Permeate water quality monitor
➢ Clean–In–Place (CIP) Ports
➢ Stable and corrosion-free Stainless steel frame
02
RO Control Panel (PLC)
➢ Low pressure/high pressure switch protections and Auto restart
➢ Pre–Treatment lockout and Level controls
➢ Programmable time delays, set-points and flush mode
➢ Startup flush/timed flush/Shut down flush
03
Available Optional Features of BWF Series Reverse Osmosis Systems
➢ Skid mounted with pre and post treatment (Media filters, etc.)
➢ Stainless steel sanitary pressure vessels/sediment filter housing
➢ Siemens, Mitsubishi, etc. brands PLC, text panel and HMI
➢ Remote display & RS232, RS485, Modbus, etc. PLC output
➢ Raw water/concentrate water quality monitor
➢ High Performance UV sterilizer/ Ozone generator
➢ Corrosion-free stainless steel, HDPE, FRP storage tanks (feed, permeate and flush)
➢ Pressurized storage system/Dosing System/CIP system/Integrated permeate flushing system
➢ Variable-frequency drive (VFD)/PH meter /ORP sensor/Temperature detector / residual Chlorine detector etc.
➢ Mild steel with paint Frame/Caster Wheels /Containerized RO systems
➢ Additional Customization Available on Request
04
Benefits of BWF Series Reverse Osmosis Systems
➢ Low energy and high efficiency TFC membranes to get high flow and ensure water quality.
➢ Prudent flux design and CIP ports to maximize system lifespan
➢ PLC provides user-friendly and flexible programmable controls
➢ Simple system Integration and flexible configurations
➢ Compact footprint saves valuable floor space
➢ Quick delivery and easy Installation
➢ Individually factory tested and preserved
➢ 1-year limited warranty
Systems Design parameters
➢ Feed Water Fouling Index: Silt Density Index (SDI) < 3
➢ Inlet Pressure: 25 - 50 PSI (1.4 - 3.5 bar)
➢ Feed Water Temperature: 5 - 40°C
➢ Turbidity: <1 NTU
➢ pH tolerance range: 3 - 11
➢ Salt Rejection: >97%
➢ Iron: <0.05 mg/l
➢ Maximum Free Chlorine: 0 ppm
Systems Specifications
| Aqualitek Brackish Water Reverse Osmosis (BWRO) Systems BWF series |
|||
| Model No. | Nominal Capacity (lph/gpd) |
Membrane Size | Membrane Qty. |
| BWF-423 | 1.4/9000 | 4''x40'' | 6 |
| BWF--424 | 1.9/12000 | 4''x40'' | 8 |
| BWF--425 | 2.4/15000 | 4''x40'' | 10 |
| BWF--426 | 2.8/18000 | 4''x40'' | 12 |
| BWF--428 | 3.8/24000 | 4''x40'' | 16 |
| BWF--4210 | 4.7/30100 | 4''x40'' | 20 |
| BWF--4212 | 5.9/37400 | 4''x40'' | 24 |
| BWF--433 | 2.1/13600 | 4''x40'' | 9 |
| BWF--434 | 2.8/18000 | 4''x40'' | 12 |
| BWF--435 | 3.6/22600 | 4''x40'' | 15 |
| BWF--436 | 4.3/27100 | 4''x40'' | 18 |
| BWF--437 | 1/6320 | 4''x40'' | 21 |
| BWF--438 | 5.7/36100 | 4''x40'' | 24 |
For technical support, please contact Aqualitek !
