Multi-Layer Media Filter (Anthracite & Sand) for Iron & Sediment Removal
MMF series Pressure Multi-media Filter Quartz Sand filter for Water Treatment
Multi-Media Filter (MMF)
Our Multi-Media Filter (MMF) is a highly efficient water filtration system designed to remove suspended solids, turbidity, and other impurities from water. Unlike single-media filters, MMFs use multiple layers of filtration media—such as sand, anthracite, and gravel—each with varying sizes and densities.
This layered structure allows for superior filtration, increased dirt-holding capacity, and longer operational cycles.
Multi-Media Filters are widely used in industrial, municipal, and commercial water treatment applications, serving as a crucial pre-treatment step for processes like reverse osmosis (RO) and ultrafiltration (UF). By ensuring cleaner water and reducing maintenance needs, MMFs enhance the overall efficiency of water treatment systems.
Features of A Multi-Media Filter(MMF)
Multi media filter are designed to provide efficient and reliable filtration while ensuring ease of use, durability, and flexibility. Here are the key features of
multi media filter:
01
Multi-Layered Filtration
➢ Utilizes different media layers (e.g., sand, anthracite, and gravel) for improved filtration efficiency.
02
High Dirt-Holding Capacity
➢ Effectively captures and retains suspended solids, reducing the need for frequent backwashing.
03
Efficient Turbidity Removal
➢ Removes particulates, sediment, and turbidity to enhance water clarity.
04
Extended Filter Run Times
➢ Optimized media arrangement allows for longer operation between backwash cycles.
5. Low Maintenance
➢ Durable design with automated or manual backwashing options for easy operation.
6. Corrosion-Resistant Construction
➢ Available in various materials like fiberglass, stainless steel, or epoxy-coated carbon steel for durability.
7. Customizable Configurations
➢ Can be tailored to meet specific flow rates, pressure requirements, and applications.
8. Pre-Treatment for Advanced Filtration
➢ Enhances the performance of RO, UF, and other water treatment systems by reducing fouling and membrane clogging.
9. Wide Range of Applications
➢ Used in industrial, municipal, commercial, and residential water treatment systems.
10. Energy-Efficient Operation
➢ Designed for optimal flow rates with minimal pressure drop, reducing energy consumption.
These features make Multi-Media Filters a reliable and efficient solution for improving water quality in various applications.
Specifications of Multi-Media Filters
Provide professional users with detailed product parameters so they can quickly evaluate product performance.
Filter tank material is optional, FRP, stainless steel and carbon steel.
(Note：In order to choose suitable filters，please to contact AQT for recommendation)
For technical support, please contact Aqualitek !
|
TANK SIZE |
SERVICE FLOW RATE |
|||||
|
|
Minimum |
Normal |
Peak |
|||
|
Dia (inch) |
GPM |
TPH |
GPM |
TPH |
GPM |
TPH |
|
7 |
2.1 |
0.5 |
2.7 |
0.6 |
3.2 |
0.7 |
|
8 |
2.8 |
0.6 |
3.5 |
0.8 |
4.2 |
0.9 |
|
9 |
3.5 |
0.8 |
4.4 |
1.0 |
5.3 |
1.2 |
|
10 |
4.4 |
1.0 |
5.5 |
1.2 |
6.5 |
1.5 |
|
12 |
6.3 |
1.4 |
7.9 |
1.8 |
9.4 |
2.1 |
|
13 |
7.4 |
1.7 |
9.2 |
2.1 |
11.1 |
2.5 |
|
14 |
8.5 |
1.9 |
10.7 |
2.4 |
12.8 |
2.9 |
|
16 |
11.2 |
2.5 |
14.0 |
3.2 |
16.7 |
3.8 |
|
18 |
14.1 |
3.2 |
17.7 |
4.0 |
21.2 |
4.8 |
|
21 |
19.2 |
4.4 |
24.0 |
5.5 |
28.8 |
6.5 |
|
24 |
25.1 |
5.7 |
31.4 |
7.1 |
37.7 |
8.5 |
|
30 |
39.3 |
8.9 |
49.1 |
11.1 |
58.9 |
13.4 |
|
36 |
56.5 |
12.8 |
70.7 |
16.0 |
84.8 |
19.2 |
|
40 |
69.8 |
15.8 |
87.2 |
19.8 |
104.7 |
23.7 |
|
42 |
76.9 |
17.4 |
96.2 |
21.8 |
115.4 |
26.2 |
|
48 |
100.5 |
22.8 |
125.6 |
28.5 |
150.7 |
34.2 |
|
60 |
157.0 |
35.6 |
196.3 |
44.5 |
235.5 |
53.4 |
|
63 |
173.1 |
39.3 |
216.4 |
49.1 |
259.6 |
58.9 |
|
72 |
226.1 |
51.3 |
282.6 |
64.1 |
339.1 |
76.9 |
|
78 |
272.2 |
61.7 |
340.2 |
77.2 |
408.3 |
92.6 |
Applications of Multi-Media Filters (MMFs)
Multi-Media Filters (MMFs) are widely used in various industries and applications where high-quality water filtration is essential. Their ability to efficiently remove suspended solids, turbidity, and other impurities makes them a crucial component in many water treatment systems.
Multi Media Filters are essential for improving water quality across multiple industries, ensuring efficiency, compliance, and reliability in water treatment processes.
AQUALITEK 500 L/h multi-stage water filtration and softening system. Automatic backwash sand carbon filter followed by water softener system; automatic backwashing multi-media filtration system for sediment and chlorine removal. Reliable high-efficiency water treatment.
Introduction to Manganese Sand Filter
Manganese Sand Filter (MSF) is an efficient water filtration system specifically designed to remove iron, manganese, and hydrogen sulfide from water.
The filter utilizes a special manganese dioxide-coated sand media, which acts as an oxidizing agent to convert dissolved iron and manganese into solid particles, allowing them to be easily trapped and removed during the filtration process.
Manganese Sand Filters are commonly used in residential, commercial, and industrial water treatment applications where high levels of these contaminants are present. By improving water quality, preventing staining, and reducing unpleasant tastes and odors, Manganese Sand Filters provide a reliable and cost-effective solution for maintaining clean, clear, and safe water.

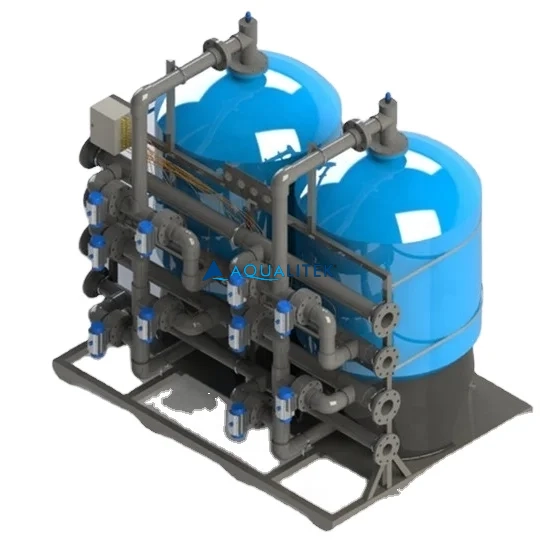

Activated Carbon Filter (ACF)
Our Activated Carbon Filter (ACF) is a highly effective water filtration system designed to remove chlorine, organic compounds, unpleasant odors, and harmful contaminants from water. Utilizing activated carbon’s high adsorption capacity, ACFs efficiently trap and eliminate impurities, improving taste, color, and overall water quality. These filters are widely used in industrial, commercial, and residential applications, serving as a critical pre-treatment step for processes like reverse osmosis (RO) and drinking water purification. With their ability to enhance water safety and meet stringent quality standards, Activated Carbon Filters play a vital role in various water treatment systems.
Introduction to Green Sand Filter (GSF)
Green Sand Filter (GSF) is an effective water filtration system designed to remove iron, manganese, and hydrogen sulfide from water. Utilizing a specially treated green sand media, this filter works through the process of oxidation and adsorption, where impurities are trapped within the filter media, ensuring clean, clear water. Green Sand Filters are widely used in both residential and industrial applications where water contains high levels of iron and other minerals that can cause staining, unpleasant odors, and corrosion. By providing an efficient and cost-effective solution for water purification, Green Sand Filters help protect plumbing systems, appliances, and enhance water quality for various applications.
Get Expert Solutions with Our Professional Water Treatment Systems
Tell us your needs, and our engineering team will provide tailored product recommendations to optimize your water quality.
