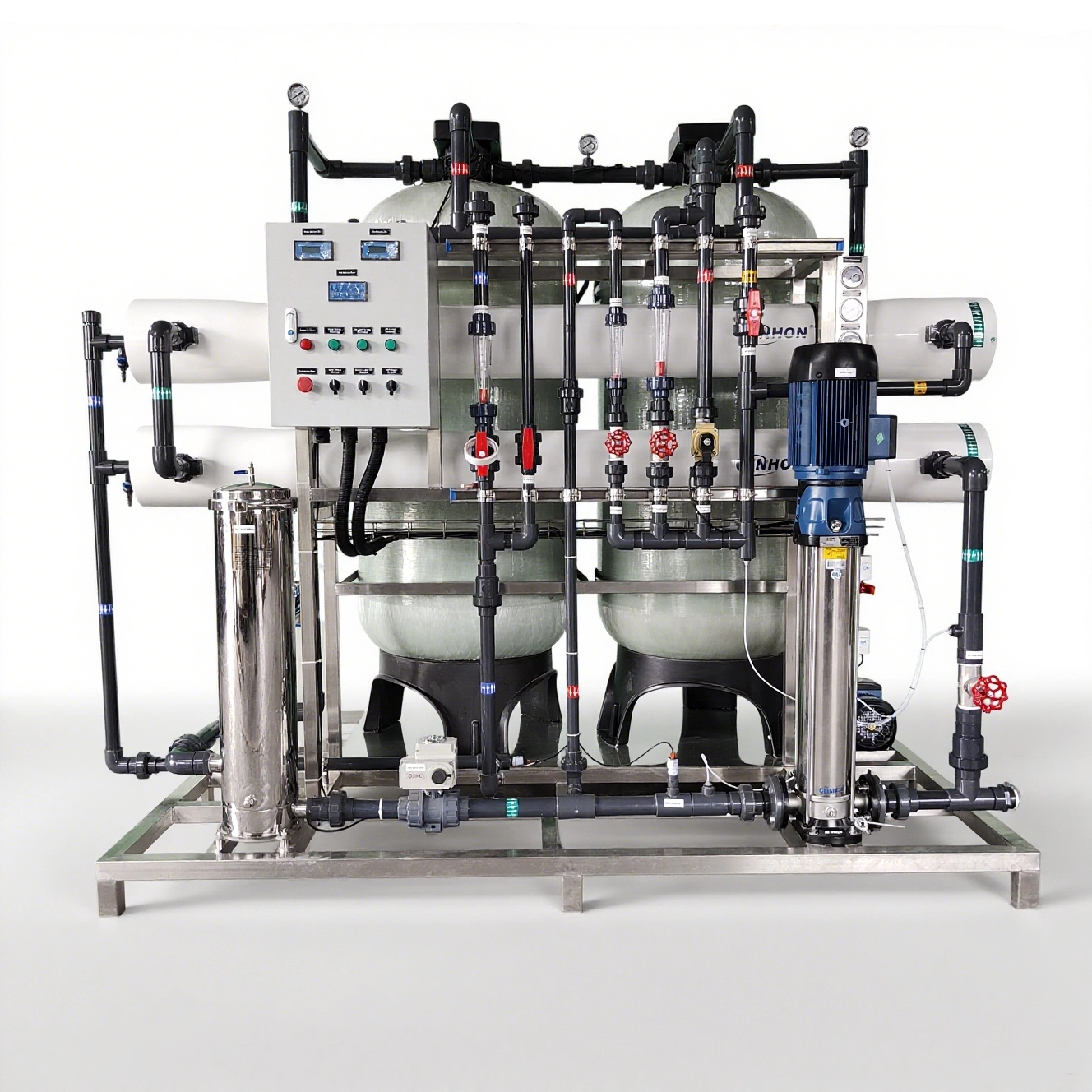

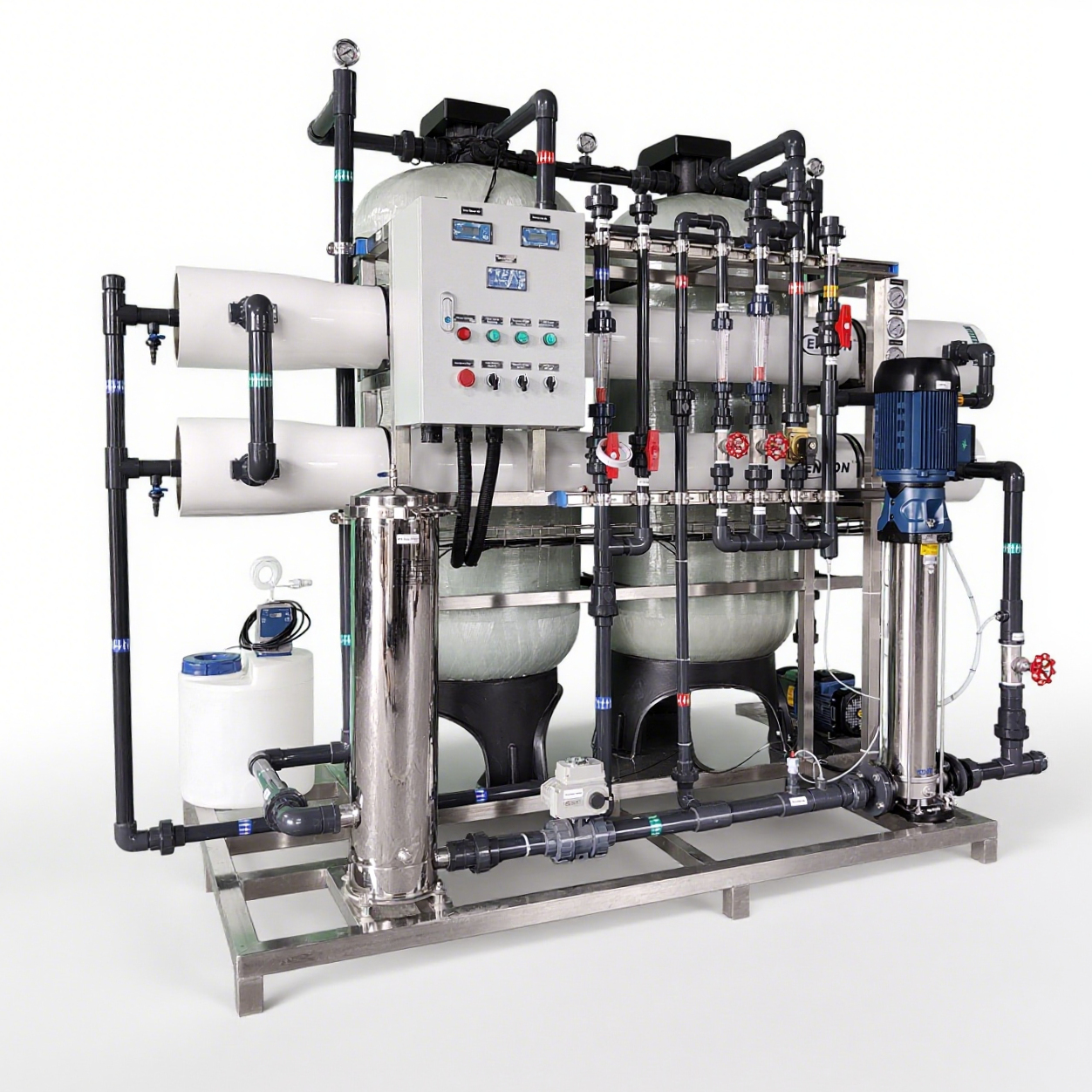

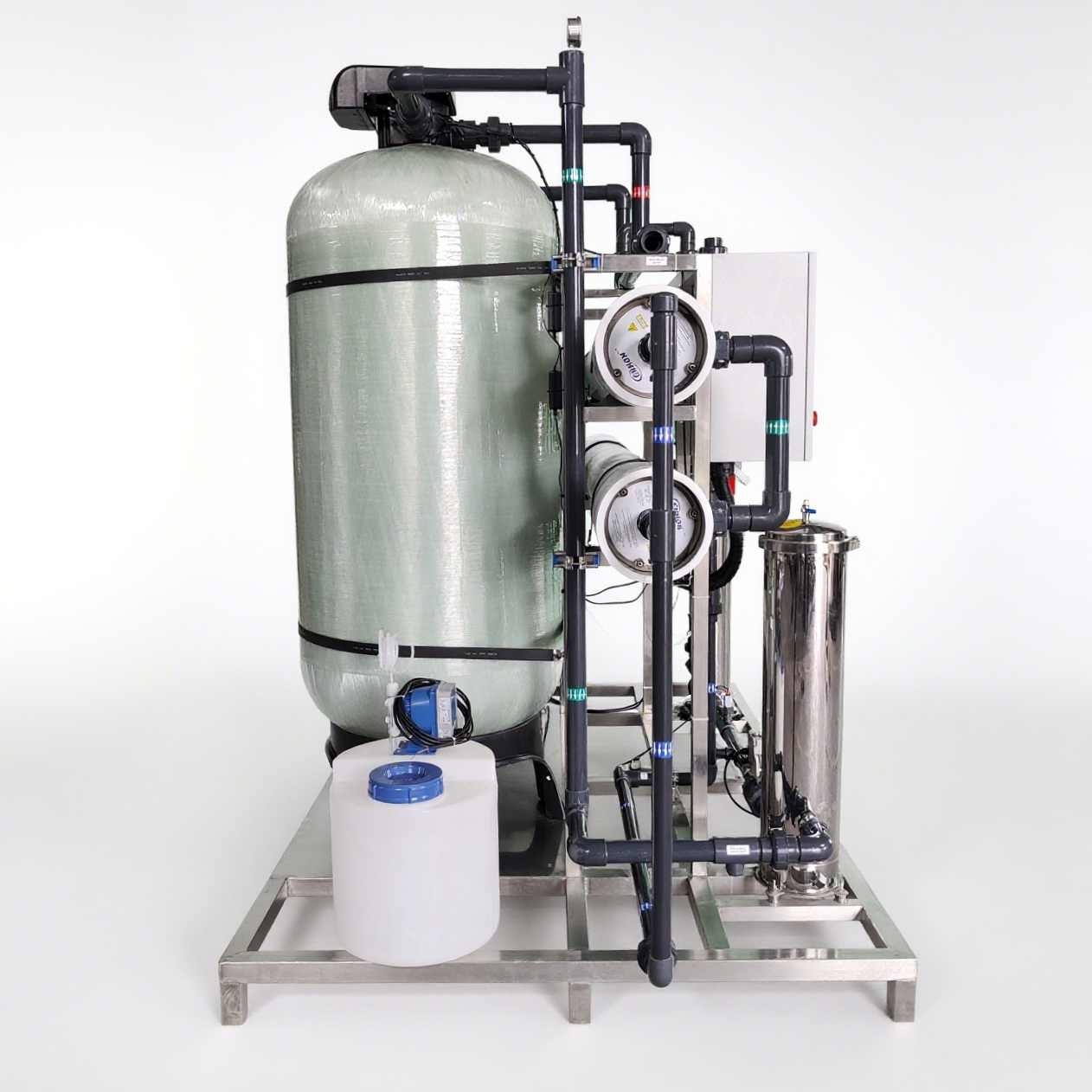

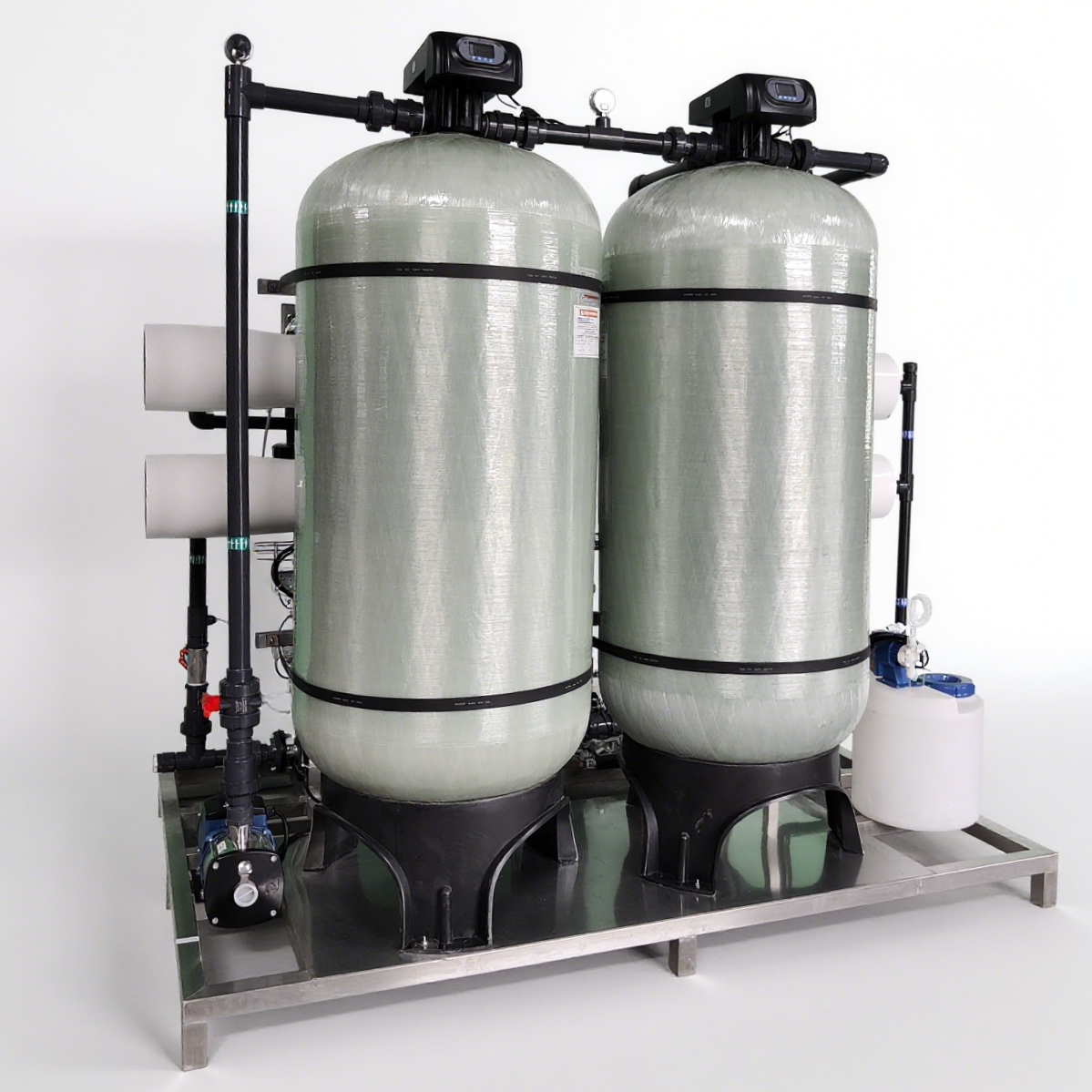

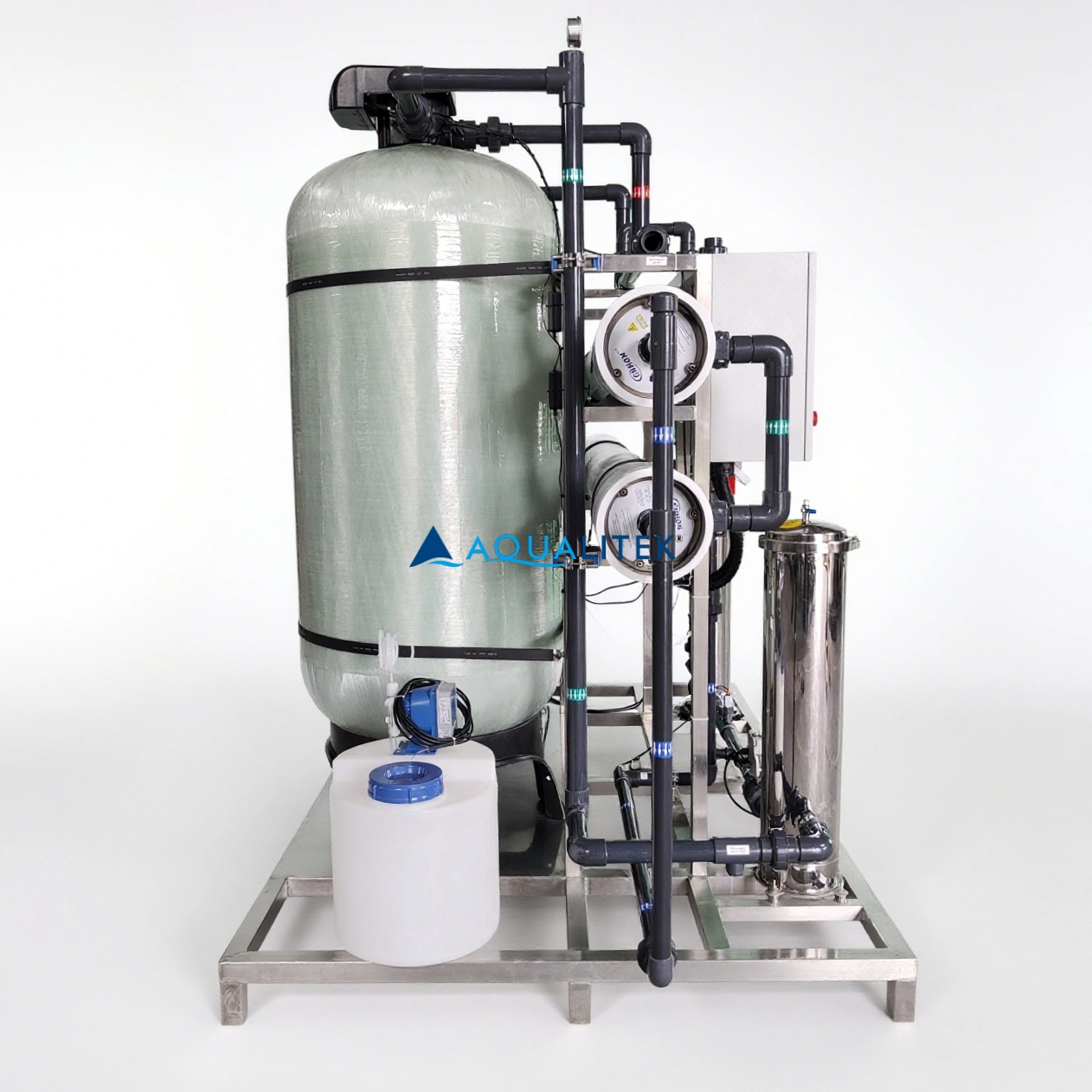

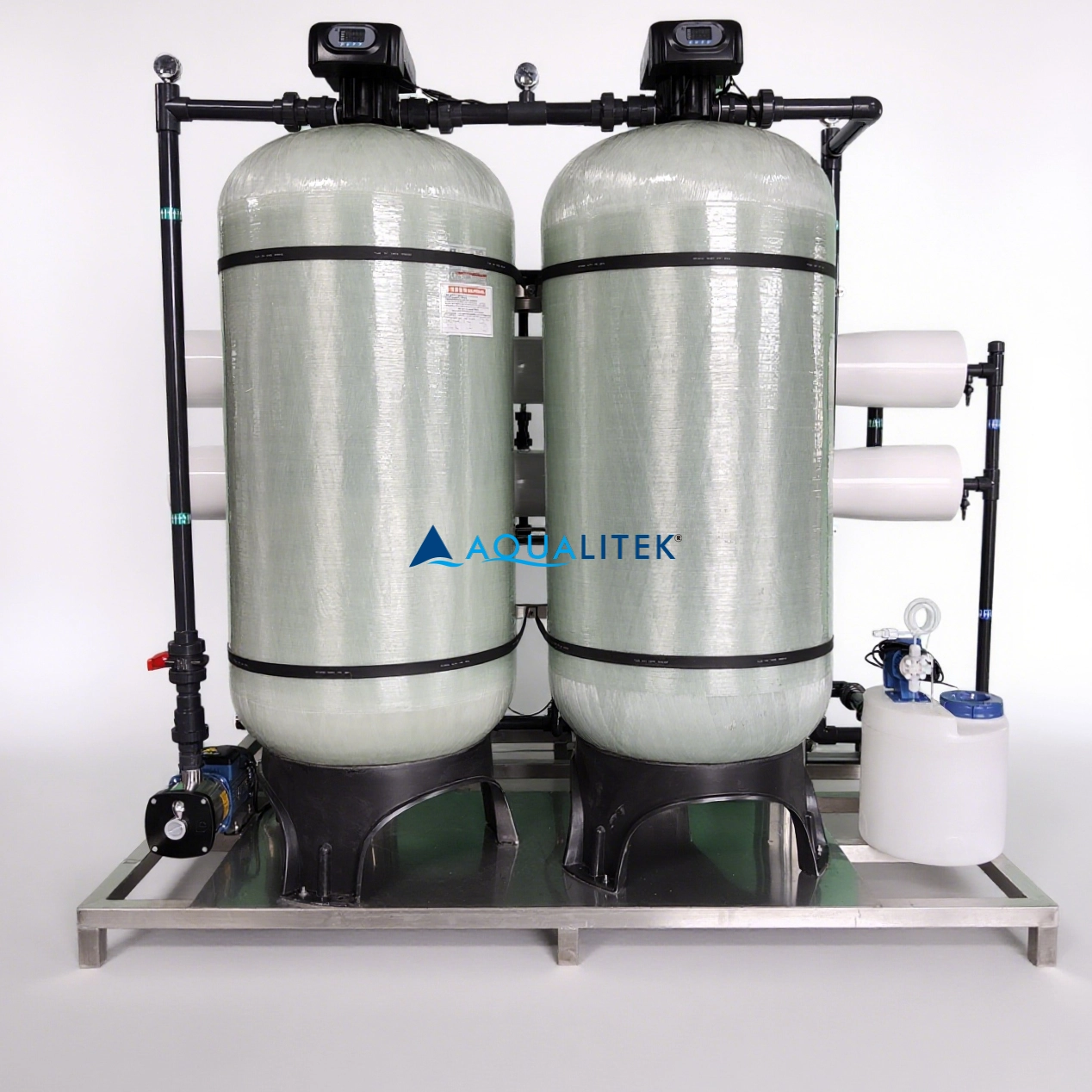

4TPH Industrial Reverse Osmosis Water Purification RO System
BWE-822 Industrial Grade High-Capacity Reverse Osmosis System
AQUALITEK 4TPH Industrial Reverse Osmosis Water Purification RO System, high-efficiency industrial-grade RO water treatment plant for manufacturing & processing, commercial reverse osmosis filtration system ideal for electronic component cleaning water use.
Technical Sheet
|
Production capacity |
4TPH RO System |
|
System specification |
TWE-822 |
|
Raw water pump |
CHL8-40/1.5kw |
|
HP pump |
CDLF8-14/12/5.5KW |
|
VONTRON LP21-8040 |
|
|
Membrane housing |
8080 300psi/450psi |
|
Flow meter |
10T/6T |
|
Conductivity meter |
Korida CCT-3320V |
|
RO controller |
Korida ROC-2015 |
|
1Mpa/2.5Mpa |
|
|
Pressure switch |
30bar&6bar |
|
Electronic control system |
Air switch.electric relay.alternating current contactor.swich.LED |
|
Control box |
SS304/Mild steel（According to client） |
|
UV |
110W( 55Wx 2pcs lamps）without cartrol box |
|
Pipe |
1.2 inch ，HP pipe:ss304 LP pipe：UPVC |
|
Pump brand |
Leo.CNP.Grundfos,etc availabe |
Model List
|
Model No. |
Nominal Capacity(lpm/gpm) |
Nominal Capacity(tph/gpd) |
No.of 8" membranes |
|
BEW-814 |
71.9/19 |
4.3/27400 |
4 |
|
BEW-815 |
89.9/23.8 |
5.4/34200 |
5 |
|
BEW-816 |
107.9/28.5 | 6.5/41100 | 6 |
|
BEW-822 |
71.9/19 | 4.3/27400 | 4 |
|
BEW-823 |
107.9/28.5 |
6.5/41100 | 6 |
|
BEW-824 |
143.8/38.1 | 8.6/54800 | 8 |
|
BEW-825 |
179.8/47.6 | 10.7/68500 | 10 |
|
BEW-826 |
215.8/57.1 | 12.9/82200 |
12 |
|
BEW-832 |
107.9/28.5 | 6.5/41100 |
6 |
|
BEW-833 |
161.8/42.8 | 9.7/61600 |
9 |
|
BEW-834 |
215.8/57.1 | 12.9/82200 |
12 |
|
BEW-835 |
269.7/71.3 | 16.2/102700 | 15 |
|
BEW-836 |
323.6/85.6 | 19.4/123300 | 18 |
|
BEW-837 |
377.6/99.9 | 22.7/143800 | 21 |
|
BEW-843 |
215.8/57.1 | 12.9/82200 | 12 |
|
BEW-844 |
287.7/76.1 | 17.2/109600 | 16 |
|
BEW-845 |
359.6/95.1 | 21.6/137000 | 20 |
|
BEW-846 |
431.5/114.2 | 25.9/164000 | 24 |
|
BEW-847 |
503.4/133.2 | 30.2/191800 | 28 |
|
BEW-849 |
647.3/171.2 | 38.8/246600 | 36 |
|
BEW-8412 |
863/228.3 | 51.8/328000 | 48 |
Machine Detail
Featrues
✔️High Precision: Thoroughly removes bacteria, rust, colloids, and macromolecular organic matter from water, retaining trace elements beneficial to human health. Key indicators such as microbial content and turbidity in purified water exceed the hygienic standards for bottled drinking water.
✔️Low Cost: High throughput, long lifespan, and maintenance-free operation.
✔️Long Life: Utilizing a vertical cross-filtration principle, it automatically cleans and resists clogging. Under normal use, the filter lifespan is 30-50 times that of ordinary water purifiers.
✔️Stable Water Quality: Excellent and stable water quality is produced, unaffected by significant fluctuations in raw water quality.
✔️No Heating or Chemicals Required: This is a physical process, with no phase change and no added chemicals (except during cleaning).
✔️Small Footprint: Modular design and compact structure.
✔️Automated Operation: Easy to implement automatic control and simple operation.
Applications
💧Drinking Water Treatment: Serves as pretreatment for RO reverse osmosis systems or directly produces high-quality drinking water, removing turbidity and microorganisms.
💧Industrial Wastewater Reuse: Treats wastewater from electroplating, textiles, printing and dyeing, petrochemicals, and other industries, achieving water resource recycling.
💧Seawater Desalination Pretreatment: Protects downstream reverse osmosis membranes, ensuring more stable operation and longer life.
💧Food and Beverage Industry: Suitable for filtration of drinking water, mineral water, beverages, beer, wine, and cider.
💧Biopharmaceutical Industry: Separates, concentrates, and purifies proteins and enzymes.
💧Pharmaceutical Industry: Filters pharmaceutical solutions, cell fragments, and biological products.
💧Chemical Industry: Filters organic solvents, chemical reagents, inks, and electroplating solutions.
Our 250 Liters Per Hour (LPH) Seawater Desalination Machine is designed to provide clean, safe, and fresh drinking water directly from seawater. Using advanced Reverse Osmosis (RO) membrane technology, this compact desalination unit is ideal for resorts, fishing vessels, offshore platforms, and island communities where freshwater is limited.
Our 500 LPH Reverse Osmosis (RO) System is engineered to provide high-quality purified water for commercial applications. Designed with advanced RO technology, durable components, and a user-friendly interface, this system ensures consistent performance, low maintenance, and long-term reliability.
With its compact design and robust skid-mounted frame, it’s an excellent choice for businesses that demand efficiency and quality in water purification.
FRP (Fiber Reinforced Plastic) filter tanks are engineered for high-performance water treatment, offering exceptional strength, corrosion resistance, and long-term durability. Ideal for sand filters, carbon filters, and multimedia filtration systems, these lightweight yet robust tanks withstand harsh water conditions, including high pressure and chemical exposure.
The Vertical Multistage Centrifugal Pump — your ultimate solution for high-pressure water supply and fluid handling needs. Engineered for exceptional performance and space-saving efficiency, this pump series is ideal for boosting water pressure, irrigation systems, industrial processes, and building services. Its compact vertical design allows easy installation in tight spaces, while the robust construction ensures durability and low maintenance. Whether for commercial, municipal, or industrial applications, our pumps deliver reliable operation and energy savings.
